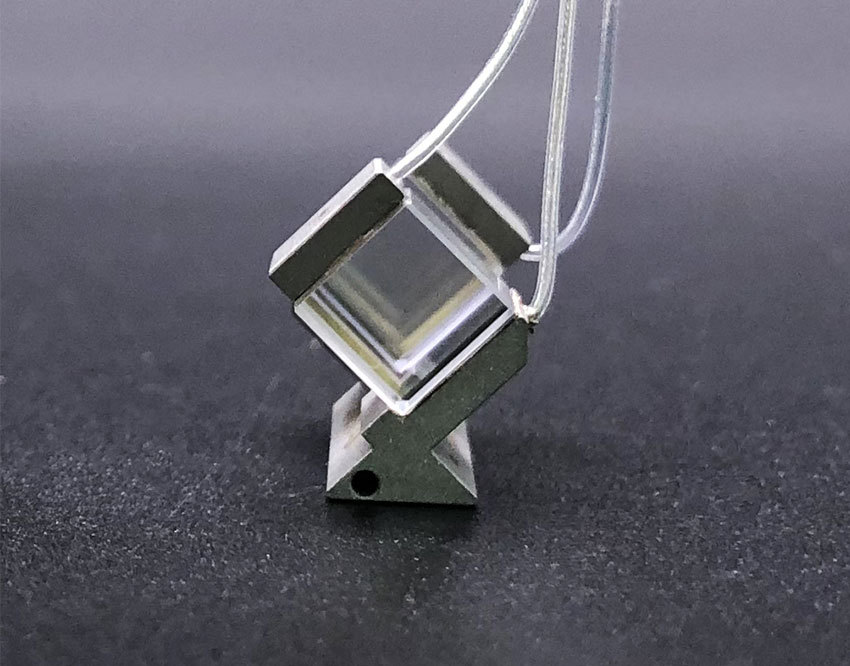

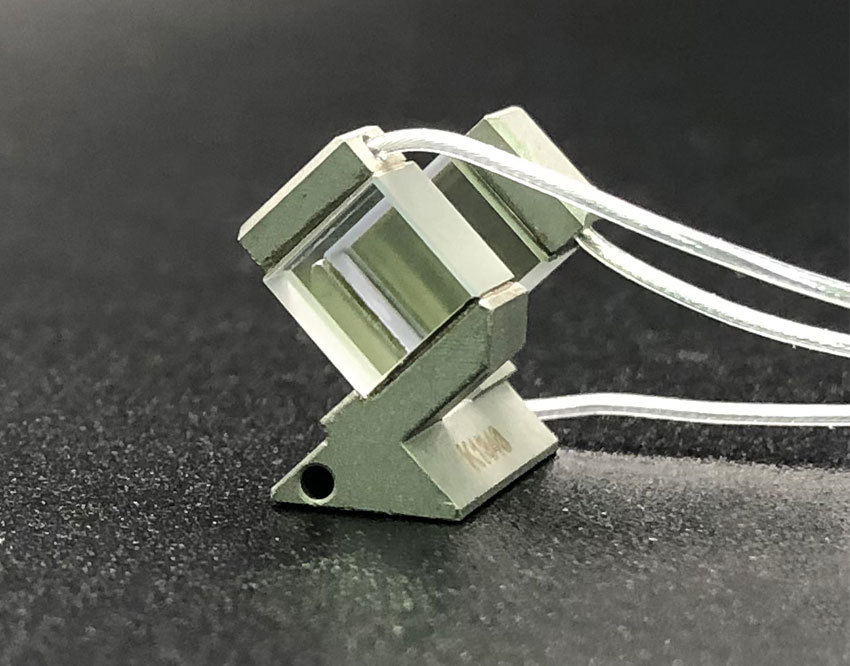

RTP Q-Switch: Based on RTP crystal (isomorphous to KTP), it features large electro-optical coefficient, high damage threshold, wide transparent range (0.35 - 3.5μm), non-deliquescence, low loss, and suits high repetition frequency. No gray tracks under intense laser. Two crystals are 90° rotated around optical axis for static birefringence compensation. Utilizes transverse electro-optical effect, and operating voltage can be adjusted. It has good temperature stability, small piezoelectric ringing, suitable for wide temperature and high repetition frequency, applied in various fields.

Download

Product Features & Applications Physical & Optical Properties Product Specifications Standard Products

Product Applications:

Laser Q-switching

Pulse selector

Phase modulation

Cavity dumping

Attenuator

Product Features：

Low operating voltage: for example, the half-wave voltage of the QR5510A model product is about 2000V

Wide application wavelength range: 420 - 2800nm

Typical laser wavelength representatives: 755/1030/1064/1535/2100/2780nm

Wide operating temperature range: -50℃～+70℃

High resistivity:＞10¹¹Ω•cm

High damage threshold：＞10J/cm²@1064nm 10ns 10Hz

Low insertion loss：＜1%@1064nm

Good stability：non-deliquescence

No piezoelectric ringing effect, suitable for high repetition frequency applications (up to 100KHz)

Crystal Structure	Orthorhombic system
Lattice Parameters	a = 12.96 Å; b =10.56 Å; c =6.49 Å
Mohs Hardness	5
Density	3.6g/cm³
Melting Point	~1000℃
Ferroelectric Transition Temperature	~810℃
Color	Colorless
Thermal Expansion Coefficient (/k)	αx=1.01x10^-5, αy =1.37x10^-5, αz =-4.17x10^-6
Dielectric Constant Eeff	Eeff= 13.0
Thermo-Optic Coefficient (dλ/dT)	-0.029 nm /℃
Electro-Optic Constants	Y-CUT: r₅₁=38.5 pm/V X-CUT: r₃₃=35 pm/V,r₂₃=12.5 pm/V, r₁₃=10.6 pm/V
Nonlinear Coefficients	d₁₅ = 2.0 pm/V; d₂₄ = 3.6 pm/V; d₃₁= 2.0 pm/V d₃₂ = 3.6 pm/V; d₃₃ = 8.3 pm/V
Resistivity	~10¹¹-10¹²Ω·cm
Deliquescence	None
1064nm Half-Wave Voltage	2x2x20 mm: 800 V 4x4x20 mm: 1600 V 6x6x20 mm: 2400 V 8x8x20 mm: 3200 V

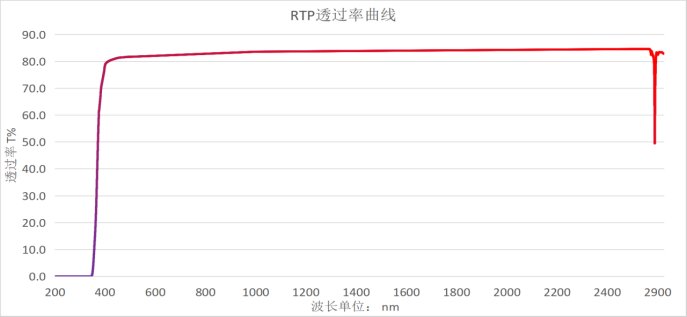

Transmission Range	350~4500 nm
Sellmeier Equation	nx²=2.15559+0.93307[1-(0.20994/λ)2]-0.01452λ2 ny²=2.38494+0.73603[1-(0.23891/λ)2]-0.01583λ2 nz²=2.27723+1.11030[1-(0.23454/λ)2]-0.01995λ2

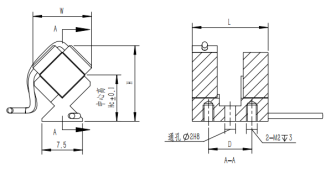

Conventional Series Products (1064nm)

ProductModel	Half-Wave Voltage	Capacitance	Product Specification	W	H	L	Hc	D
QR2205A	1600V±15%	≤3.5pF	2×2×12	5.9	8.6	12	5.7	8
QR2210A	800V±15%	≤6pF	2×2×22	5.9	8.6	22	5.7	18
QR3305A	2400V±15%	≤3.5pF	3×3×14	7.3	10.0	14	6.4	8
QR3308A	1500V±15%	≤6pF	3×3×20	7.3	10.0	20	6.4	13
QR4405A	3200V±15%	≤6pF	4×4×14	8.7	11.5	14	7.1	8
QR4410A	1600V±15%	≤6pF	4×4×25	8.7	11.5	25	7.1	18
QR5505A	4000V±15%	≤6pF	5×5×14	10.1	12.9	14	7.9	8
QR5510A	2000V±15%	≤6pF	5×5×25	10.1	12.9	25	7.9	18
QR6605A	4800V±15%	≤6pF	6×6×14	11.5	14.3	14	8.6	8
QR6610A	2400V±15%	≤6pF	6×6×25	11.5	14.3	25	8.6	18
QR7705A	5600V±15%	≤6pF	7×7×14	12.9	15.7	14	9.3	8
QR7707A	3900V±15%	≤6pF	7×7×18	12.9	15.7	18	9.3	13
QR7710A	2800V±15%	≤6pF	7×7×25	12.9	15.7	25	9.3	18
QR8805A	6400V±15%	≤6pF	8×8×14	14.3	17.1	14	10.0	8
QR8808A	3900V±15%	≤6pF	8×8×20	14.3	17.1	20	10.0	13
QR8810A	3200V±15%	≤6pF	8×8×25	14.3	17.1	25	10.0	18
QR1005A	8000V±15%	≤6pF	10×10×14	16.5	19.6	14	11.4	8

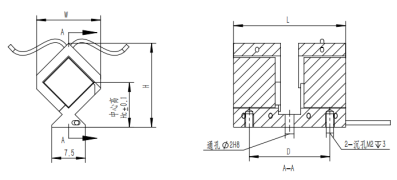

Low-Pressure Series Products（1064nm）

Product Model	Product Specification	1/4Wave Voltage	Capacitance	W	H	L	H_c	D	Reference
QR7707C	7×7×18	2000V±150V	≤6pF	13.1	17.3	18	9.3	13	No discharge@2500V&2000Pa
QR7710C	7×7×18	1400V±150V	≤6pF	13.1	17.3	18	9.3	13	No discharge@2500V&2000Pa
QR8810C	8×8×25	1600V±150V	≤6pF	14.3	18.8	25	10.8	18	No discharge@2500V&2000Pa

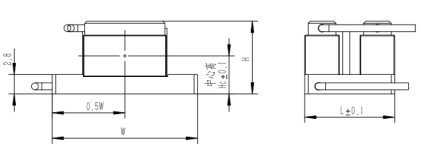

Slab Series Products（1064nm）

Product Model	Product Specification	Half-Wave Voltage	Capacitance	W	H	L	H_c	D
QR080405AW	8×4×13	3200V±15%	≤6pF	17	6.5	13	4.5	12.6
QR100505AW	10×5×13	4000V±15%	≤6pF	19	7	13	5	14.6
QR120605AW	12×6×13	4800V±15%	≤6pF	21	7.5	13	5.5	16.6
QR080410AW	8×4×23	1600V±15%	≤6pF	17	6.5	23	4.5	12.6
QR100510AW	10×5×23	2000V±15%	≤6pF	19	7	23	5	14.6
QR120610AW	12×6×23	2400V±15%	≤6pF	21	7.5	23	5.5	16.6
