1064nm Short Pulse Laser Module
Categories:
Nd:YAG (Neodymium-doped Yttrium Aluminum Garnet) is a widely used laser gain medium capable of operating in various pulse regimes including millisecond, nanosecond, and picosecond, delivering 1064nm laser which is widely used across multiple fields including aesthetic application, industrial applications, and scientific research.
Nd:YAG (Neodymium-doped Yttrium Aluminum Garnet) is a widely used laser gain medium capable of operating in various pulse regimes including millisecond, nanosecond, and picosecond, delivering 1064nm laser which is widely used across multiple fields including aesthetic application, industrial applications, and scientific research.
Through years of technical expertise and continuous R&D, CRYSTECH has developed high-performance, long-lifetime 1064nm Short Pulse Laser Module, based on the specific performance characteristics of different laser cavities, Nd:YAG crystals, and xenon flash lamps, and combined with customer application requirements. This module is ideally suited for use as oscillator and amplifier in nanosecond and picosecond laser systems for the aesthetic laser system.
Product Applications:
- Oscillator for Nanosecond Laser Systems
- Amplifier for Nanosecond Laser Systems
- Amplifier for Picosecond Laser Systems
Product Features:
- Compact Structure & Easy Installation
- High Single-Pulse Energy & High Peak Power
- Stable Output Energy
- Long Service Life
- Low Thermal Effect
Product Specifications:
Parameter | Specification | Unit | Notes | |
Model | LM1064-SSF70-AA | LM1064-SSF80-AA |
|
|
Wavelength | 1064nm | nm |
| |
Laser Crystal | Nd:YAG |
|
| |
Rod Diameter | Dia 7mm | Dia 8mm | mm |
|

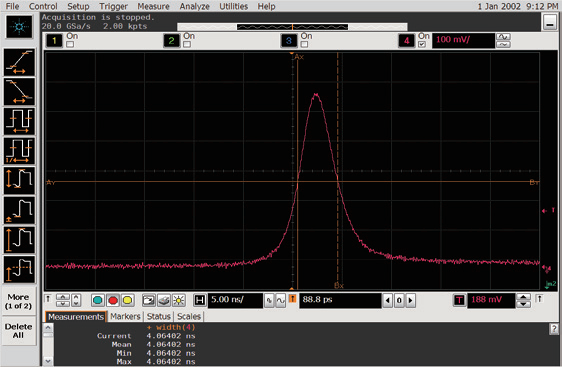

Output Energy | ≥ 650 | ≥ 800 | mJ | 1Hz,10ns |
≥ 550 | ≥ 700 | mJ | 10Hz,10ns | |
Pulse Duration | 5~15ns | ns | Resonator dependent | |
Repetition Rate | 1~10 | Hz |
| |
Beam Diameter | ~ 8 | ~ 9 | mm | Distance 30cm |
Beam Divergence | <3.5 | <3.5 | mrad | 10Hz,10ns,30cm |
Electro-Optic Efficiency | > 1.3% @ 550mJ | > 1.5% @ 700mJ |
| 10Hz, Q-Switched |
Energy Instability | < 3% | < 3% |
|
|

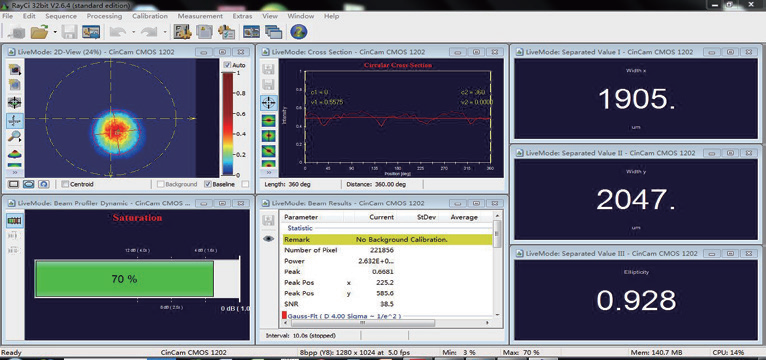

Beam Circularity | >95% | >95% |
|
|
Beam Profile | Near Flat-Top |
|
| |
Service Life | ≥ 1 million shots |
| 10Hz,10ns | |
Product Dimensions | 57.5 x 70 x 215 | mm |
| |
Product Weight | ~ 850g | g | Including base | |
Electrode Connection | wire connection, wire length 150mm |
|
| |
Test Conditions: Resonator Length 44cm, HR Mirror :Cell Mirror, OC Mirror: R=7~8%, KD*P Q-Switch.

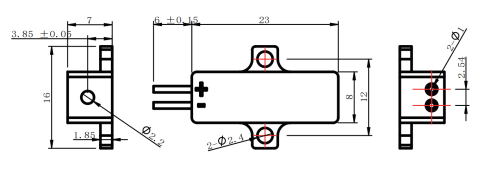

Dimensions (mm):
Module Interfaces:
1.Electrodes:
Red wire: connect to the positive terminal of the power supply.
Black wire: connect to the negative terminal of the power supply.
The two lamps are connected in parallel.
2.Coolant Inlet/Outlet ports are with G1/4-thread. Customers can connect it using their own connectors with G1/4 thread (thread length less than 10 mm). Alternatively, the optional PC12-G02 quick-connectors (supplied in the package) can be used, which is compatible with a 12 mm outer diameter water pipe.
Product Specifications:
Parameter | Specification | Unit | Notes | |
Model | LM1064-SSF70-AA | LM1064-SSF80-AA |
|
|
Wavelength | 1064nm | nm |
| |
Laser Crystal | Nd:YAG |
|
| |
Rod Diameter | Dia 7mm | Dia 8mm | mm |
|
Output Energy | ≥ 650 | ≥ 800 | mJ | 1Hz,10ns |
≥ 550 | ≥ 700 | mJ | 10Hz,10ns | |
Pulse Duration | 5~15ns | ns | Resonator dependent | |
Repetition Rate | 1~10 | Hz |
| |
Beam Diameter | ~ 8 | ~ 9 | mm | Distance 30cm |
Beam Divergence | <3.5 | <3.5 | mrad | 10Hz,10ns,30cm |
Electro-Optic Efficiency | > 1.3% @ 550mJ | > 1.5% @ 700mJ |
| 10Hz, Q-Switched |
Energy Instability | < 3% | < 3% |
|
|
Beam Circularity | >95% | >95% |
|
|
Beam Profile | Near Flat-Top |
|
| |
Service Life | ≥ 1 million shots |
| 10Hz,10ns | |
Product Dimensions | 57.5 x 70 x 215 | mm |
| |
Product Weight | ~ 850g | g | Including base | |
Electrode Connection | wire connection, wire length 150mm |
|
| |
Test Conditions: Resonator Length 44cm, HR Mirror :Cell Mirror, OC Mirror: R=7~8%, KD*P Q-Switch.
