DYE HP(585nm/650nm)
Categories:
The Dye Laser is a kind of laser radiation generated with organic dyes as the medium. It is widely used in the treatment of vascular diseases in medical cosmetology, such as port-wine stains, hemangiomas, telangiectasia, rosacea, spider nevi, acne, scars, stretch marks, dark circles around the eyes, skin rejuvenation, pseudofolliculitis, and so on. Based on the application of the Dye Laser in the medical cosmetology market, CRYSTECH uses solid dye bodies as the laser medium to manufacture the Dye Handpiece. As the operating handle for medical cosmetology procedures, the product is connected to the laser output terminal of the laser beauty instrument and simultaneously realizes the conversion of the laser wavelength from 532nm to 650nm (or 585nm).The product features a compact structure, is convenient to use, and has stable performance. By replacing the handpiece, a single set of laser treatment apparatus can achieve different laser beam emission mode outputs.
Product Applications:
·
·
·
·
·
·
Product Features：
·
·
Product Parameters for Nanosecond
Model | Output wavelength | Efficiency | Spot Size | service life | Signal Cabl |
HP650-DYE-NHN | 650nm | 40% | 2.5+/-0.5mm | ≥20K次 | No |
HP585-DYE-NHN | 585nm | 60% | 2.5+/-0.5mm | ≥20K次 | No |
HP650-DYE-NSN | 650nm | 35% | 2.5+/-0.5mm | ≥20K次 | No |
HP585-DYE-NSN | 585nm | 50% | 2.5+/-0.5mm | ≥20K次 | No |
HP650-DYE-NHS | 650nm | 40% | 2.5+/-0.5mm | ≥20K次 | Yes |
HP585-DYE-NHS | 585nm | 60% | 2.5+/-0.5mm | ≥20K次 | Yes |
HP650-DYE-NSS | 650nm | 35% | 2.5+/-0.5mm | ≥20K次 | Yes |
HP585-DYE-NSS | 585nm | 50% | 2.5+/-0.5mm | ≥20K次 | Yes |

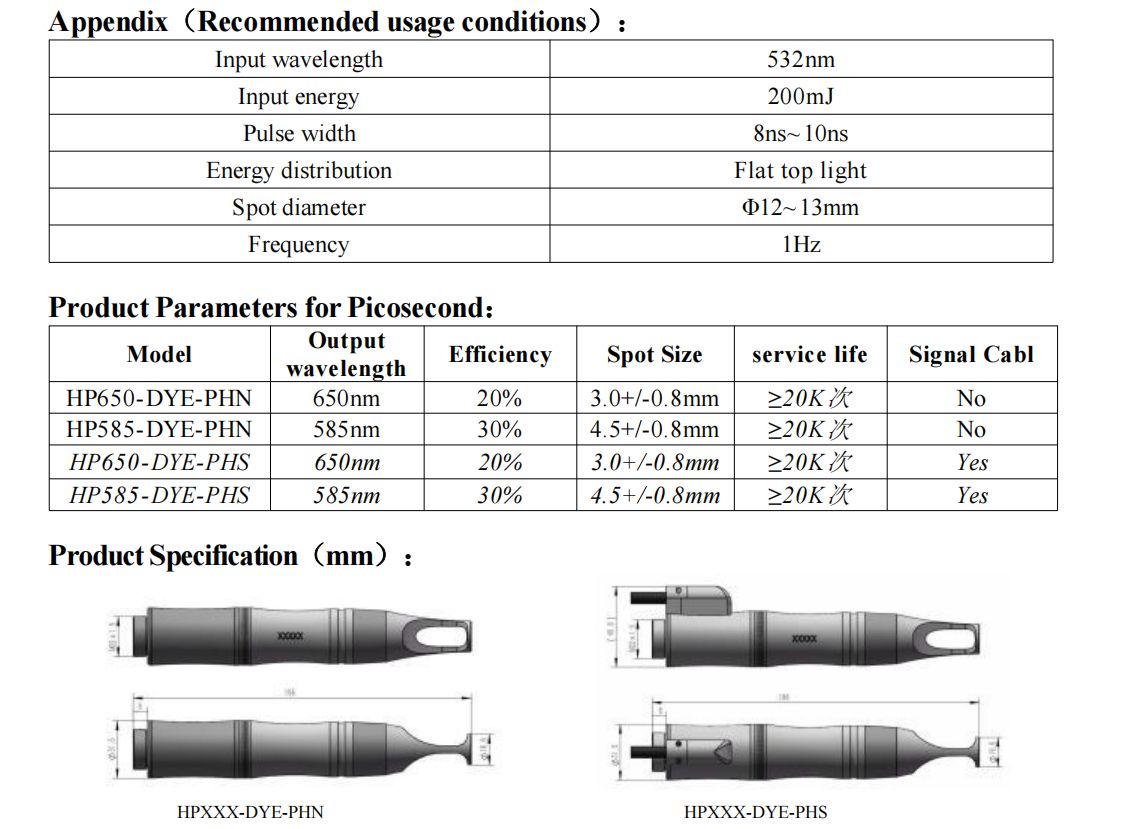

Product Parameters for Picosecond
Model | Output wavelength | Efficiency | Spot Size | service life | Signal Cabl |
HP650-DYE-PHN | 650nm | 20% | 3.0+/-0.8mm | ≥20K次 | No |
HP585-DYE-PHN | 585nm | 30% | 4.5+/-0.8mm | ≥20K次 | No |
HP650-DYE-PHS | 650nm | 20% | 3.0+/-0.8mm | ≥20K次 | Yes |
HP585-DYE-PHS | 585nm | 30% | 4.5+/-0.8mm | ≥20K次 | Yes |
Product Specification（ mm）
HPXXX-DYE-NHN(NSN) HPXXX-DYE-NSS(NHS)
Precautions：
- It is recommended to apply the product according to the usage conditions in the attached table. Otherwise, its lifespan will not reach 20,000 times.
- The input light should not contain light of other wavelengths, such as the 1064nm laser.
Appendix（Recommended usage conditions）
Input wavelength | 532nm |
Input energy | 200mJ |
Pulse width | 8ns~ 10ns |
Energy distribution | Flat top light |
Spot diameter | Φ12~ 13mm |
Frequency | 1Hz |
Product Specification（ mm）
HPXXX-DYE-PHN HPXXX-DYE-PHS

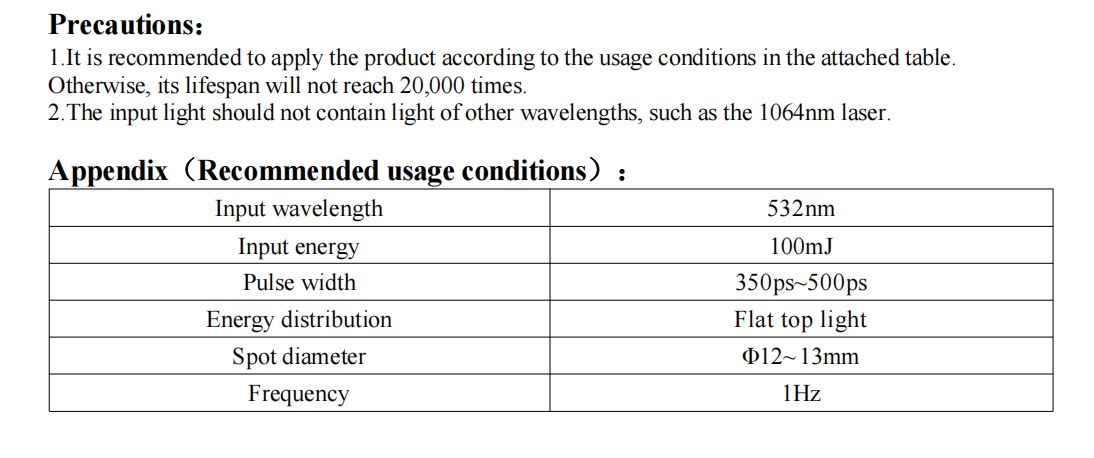

Precautions：
1.It is recommended to apply the product according to the usage conditions in the attached table. Otherwise, its lifespan will not reach 20,000 times.
2.The input light should not contain light of other wavelengths, such as the 1064nm laser.
Appendix（Recommended usage conditions）
Input wavelength | 532nm |
Input energy | 100mJ |
Pulse width | 350ps~500ps |
Energy distribution | Flat top light |
Spot diameter | Φ12~ 13mm |
Frequency | 1Hz |
