CRYSTECH is dedicated to manufacturing high precision mirrors for solid-state laser systems. We have over 20 years of experience in mirrors manufacturing, design, and coating. We offer a wide range of mirrors with different materials and different wavelengthes. CRYSTECH own the top coating expert team and the advanced coating machines in China. Our engineers will help you with customized coating design for the mirrors if needed.

Download

Product Features Specifications& Coatings Standard Products

·Materials available in the visible to infrared wavelength

·Customizable shape and size

·Diameter：3-500mm

·Clear Aperture：>90%

·Flatness：L/10@633nm

·Surface Quality：10/5

·Parallelism:<10″

·High Damage Threshold

·Provide standard coating or customize according to customer needs

Description

CRYSTECH is dedicated to manufacturing high precision mirrors for solid-state laser systems.
We have over 20 years of experience in mirrors manufacturing, design, and coating. We offer a wide range of mirrors with different materials and different wavelengthes. CRYSTECH own the top coating expert team and the advanced coating machines in China. Our engineers will help you with customized coating design for the mirrors if needed.

Coating and testing capabilities

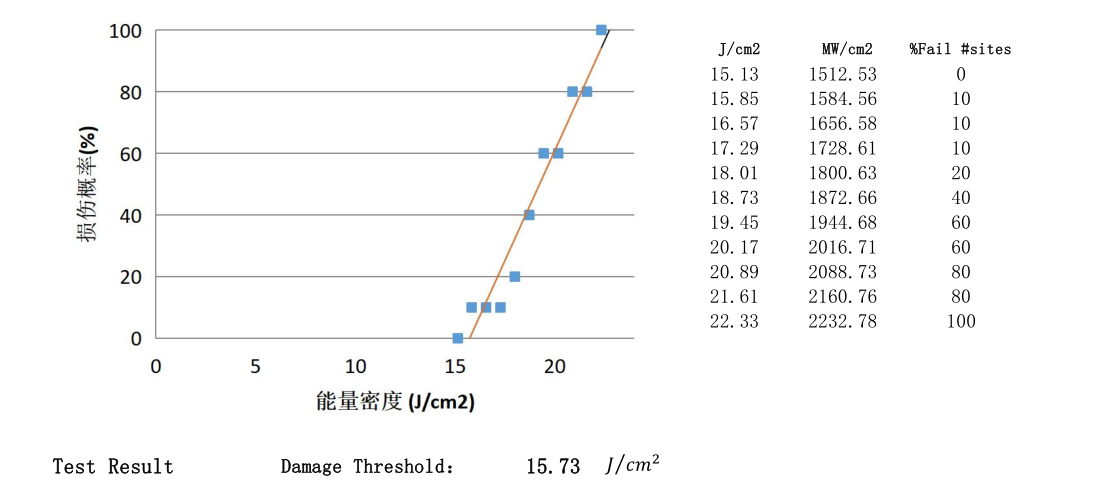

1064nm Damage Threshold

532nm Damage Threshold

Type	Size	Coating
Arm mirror	φ25X3.5	S1:HR@1064&532&650,AOI=45°, S2:无 S1:HR@1064&532,HT@650, AOI=45°S2:无
	φ25.4x3.2
	φ25.4x5
Full mirror	φ10X3/5	HR@1064, AOI=45°or 0° HR@1064&532, AOI=45°or 0° HR@1064&650, AOI=45° HR@1064&755, AOI=45°
	φ15x3
	φ20x3/5
	φ25.4X3/5/6.35
Output mirror	φ12.7X3	PR1064/AR1064,T=40,50,60,65,70,80,90% S1:PR755, S2:AR755
	φ15X3
	φ20X3/6
	φ25.4X6.35
Beamsplitters	16X12X1	S1:HR1064,HT532；S2:AR532, AOI=45° S1:HR1064,AR532；S2:AR532, AOI=0° S1:HR532,HT1064; S2:AR1064 AOI=45° S1:HR1064,HT755；S2:AR755, AOI=45°
	φ25X3.5
	φ15X3
	φ25.4X3
	φ20X2
