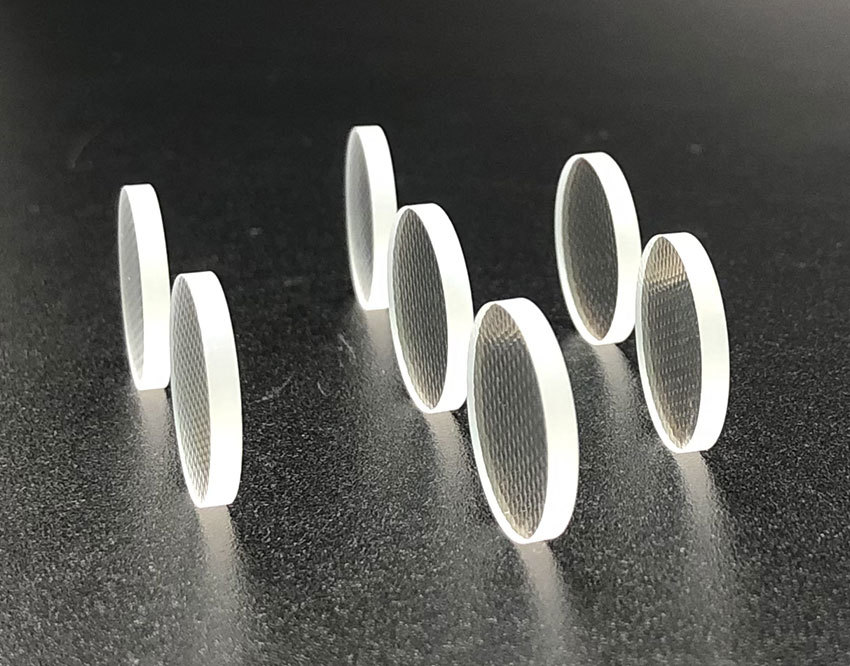

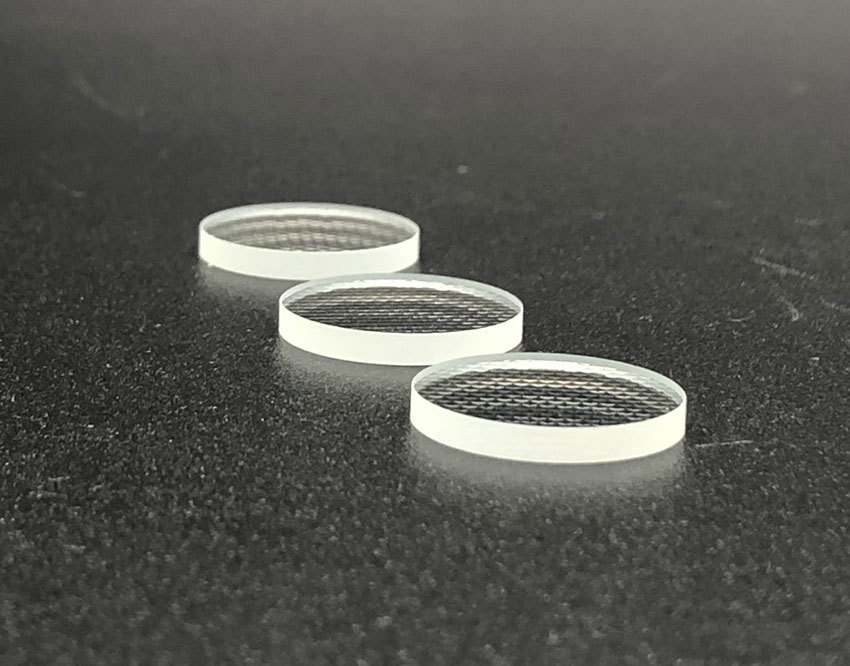

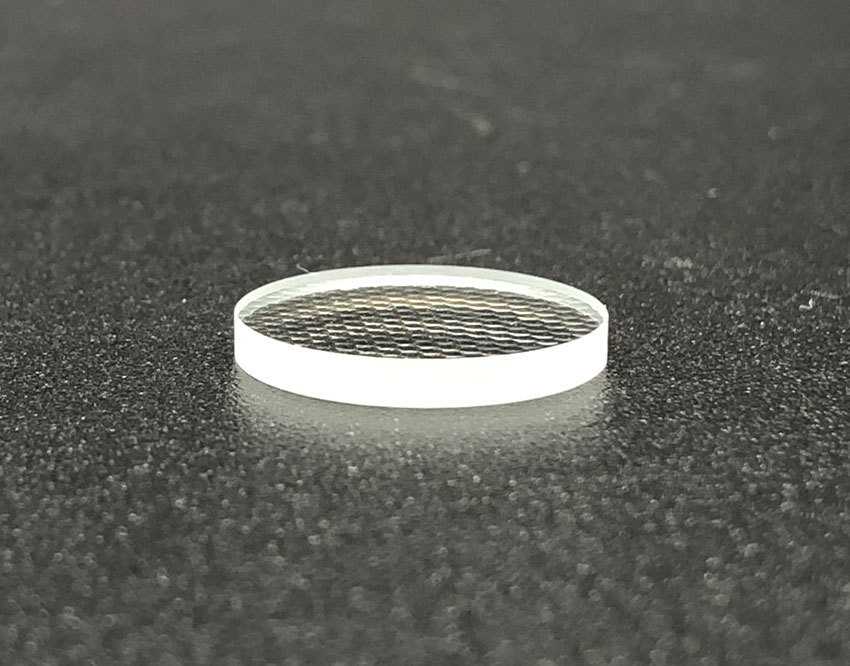

CRYSTECH is dedicated to manufacturing high precision Pico Lens for Laser Medical Device. We have over 10 years of experience in pico lens manufacturing, design, and coating. It is a special optical device with a structure similar to a honeycomb, consisting of a series of small convex lenses with a gap in the middle, and it is also called as a microlens array.

Download

Product Features Specifications& Coatings Standard Products

·Customizable size

·Dimension Tolerance：+/-0.1mm

·Clear Aperture：>90%

·Efficiency：>95%

·Wavefront distortion：L/6 @633nm

·High Damage Threshold

·Provide standard coating or customize according to customer needs

Description

CRYSTECH is dedicated to manufacturing high precision Pico Lens for Laser Medical Device.

We have over 10 years of experience in pico lens manufacturing, design, and coating. It is a special optical device with a structure similar to a honeycomb, consisting of a series of small convex lenses with a gap in the middle, and it is also called as a microlens array.

Application

·Removal of pigmented spots

·Acne and acne mark treatment Skin wrinkle removal

·Improve joint folds and stretch marks during pregnancy

·Improve deep scars on the skin

·tattoo removal

Advantages

·Focus laser energy onto the "honeycomb instant effect lens" and reorganize the energy

·Focus 70% of the high energy onto the central point of the honeycomb, forming a honeycomb spot that acts on the human skin

·The laser energy released from the central point of each honeycomb can reach an intensity of over 20 times higher

·Honeycomb oscillation effect, shattering melanocytes in skin flakes and spreading to the deep dermis laye

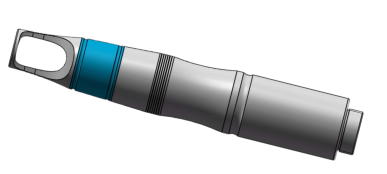

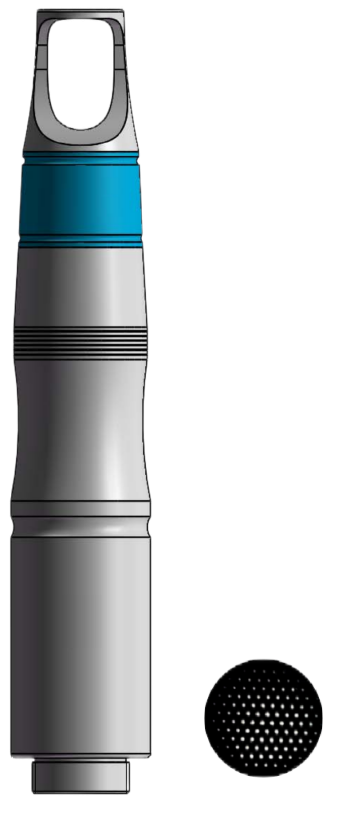

Beam spot and matching handpiece

In the laser beauty industry, pico lens is usually used in combination with picosecond lasers to combine the advantages of both picosecond lasers and pico lens in the output spot. Not only does it have the advantages of dot matrix laser, but it also has a pulse width range, minimal skin damage, low risk of anti blackening, and fast pigment removal, producing better results in removing blackening, whitening, and softening the skin.

The pico lens we provide can be used on handpiece, which are detachable and easy to use.

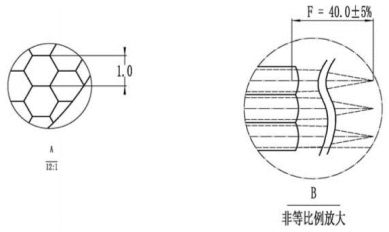

Size	Working Wavelength	Efficiency	Spot
φ16x2	1064/532nm	95%	Hexagon

The pico lens covers a wavelength range of 450nm~2800nm and can produce honeycomb focusing effects on multiple wavelengths such as 532nm, 755nm, 1064nm, etc.
