CRYSTECH is dedicated to manufacturing high precision prism for solid-state laser systems. We have over 20 years of experience in prism manufacturing, design, and coating.There are many types of prisms, each having a particular geometry to achieve the invert, rotate, deviate or displace a beam.

Download

Product Features Specifications& Coatings Standard Products

·Materials available in the visible to infrared wavelength

·Customizable shape and size

·Diameter: 1-100mm

·Clear Aperture：>90%

·Flatness：L/4 @633nm

·Surface Quality：10/5

·Angle tolerance：<15″

·High damage threshold

·Provide standard coating or customize according to customer needs

Description

CRYSTECH is dedicated to manufacturing high precision prism for solid-state laser systems.

We have over 20 years of experience in prism manufacturing, design, and coating.There are many types of prisms, each having a particular geometry to achieve the invert, rotate, deviate or displace a beam.

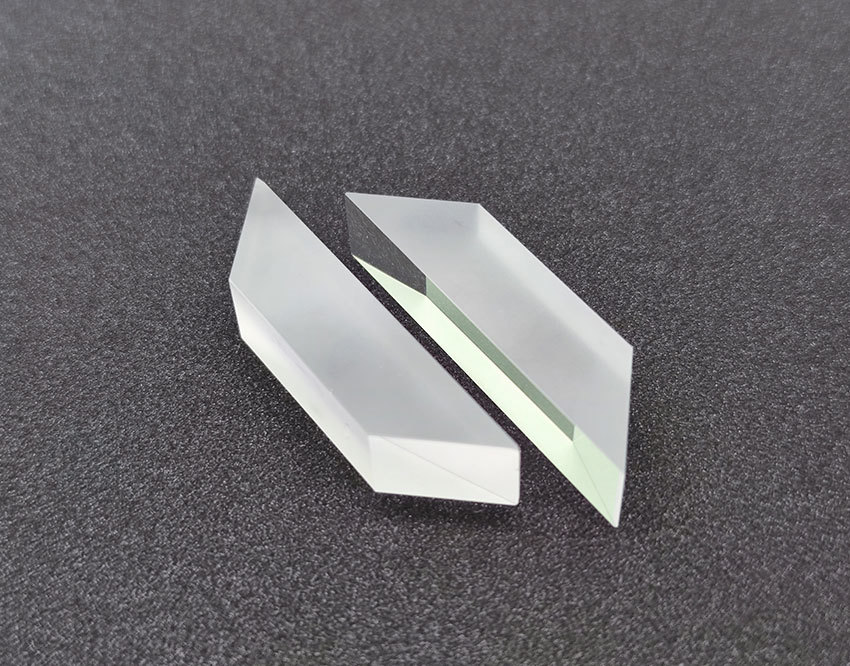

	Right angle prism is deviating or deflecting a beam of light with 90°or 180°. lt is often used in telescope, periscope and other optical system.

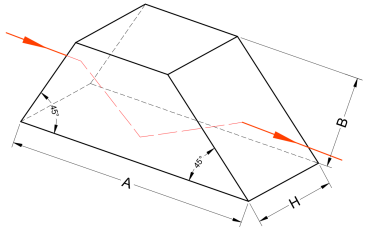

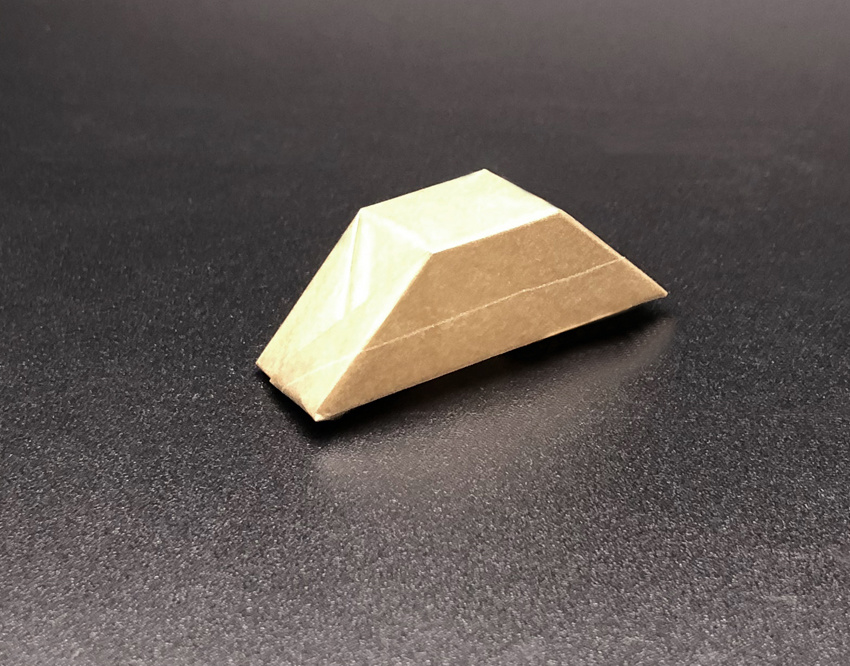

	Dove prism has two applications.The main application is used as a rotator.And when the prism is rotated about the input parallel ray through some angle, the image rotates through twice that angle.Another application is used as a retroreflector.

Type	Size	Coating
Right-angle Prism	5X5X5mm	S1,S2:AR694&515 S1,S2:AR15540 S1,S2:AR1064&532
	8X8X8mm
	10X10X10mm
	14X14X14mm
Dove Prism	7X7X17mm	AR@1064&532/无 AR1064 / AR1064
	12X12X52mm
	15X15X47mm
