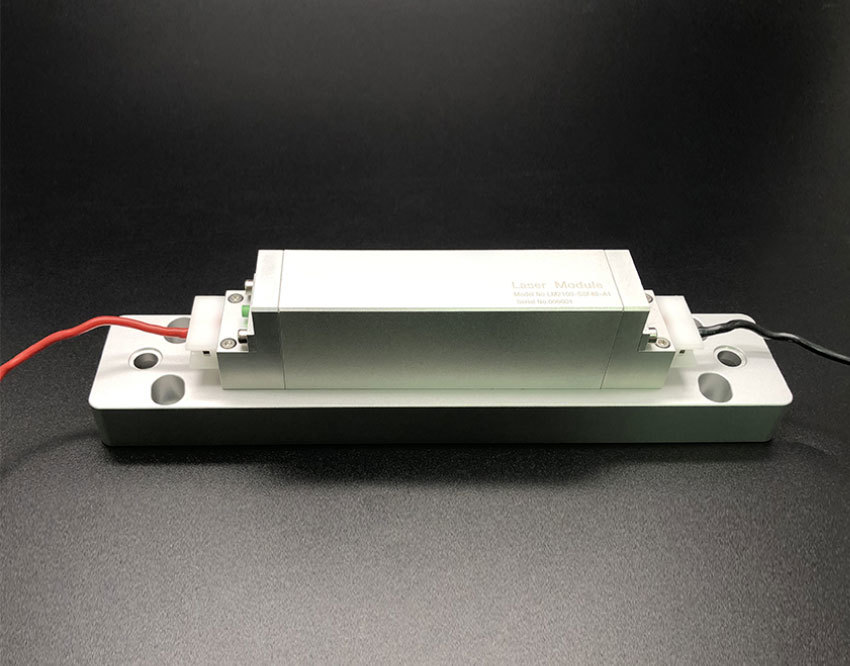

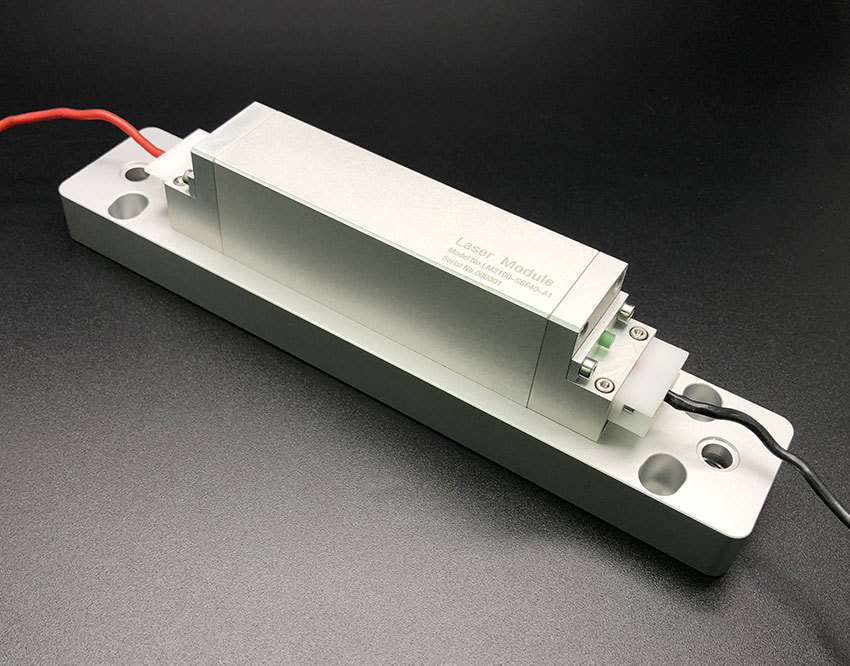

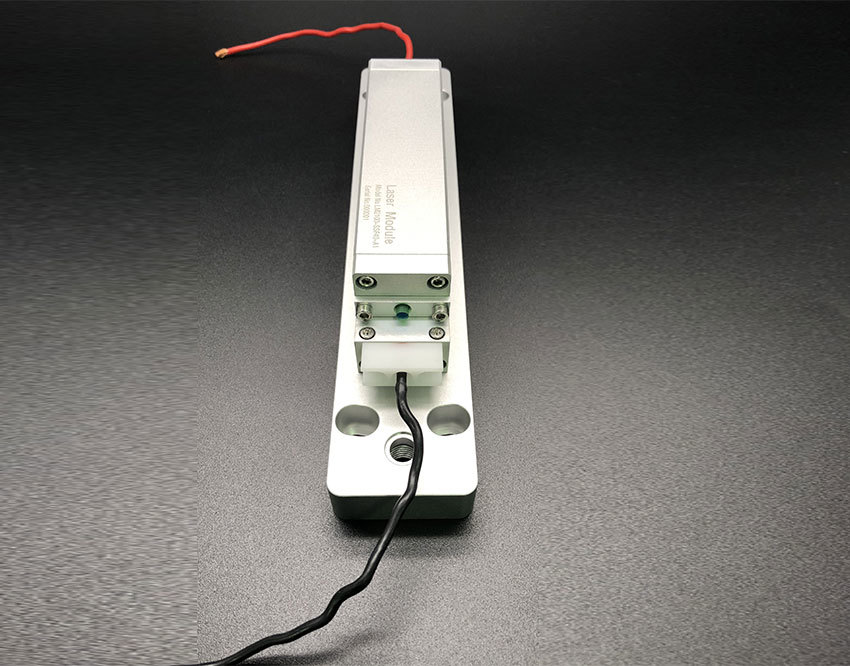

2100nm Laser Module(30W)
Categories:
Holmium laser (2100nm) is a type of laser. It uses yttrium-aluminum-garnet (YAG) as the activating medium and is produced by a pulsed solid-state laser device made of a laser crystal (Cr:Tm:Ho:YAG) doped with sensitizing ion chromium (Cr), energy-transferring ion thulium (Tm), and activating ion holmium (Ho). Holmium laser can be applied in surgical operations in departments such as urology, orthopedics, otolaryngology, dermatology, and gynecology. Based on the application of holmium laser in the medical beauty market and combined with the characteristics of crystal materials, CRYSTECH has designed and developed a 2100nm pulsed laser module. This product adopts the side-pumping mode of xenon lamps, wwith greater energy and longer service life. Moreover, it features a more compact structure, better stability, simple operation as well as being easy for the maintenance of the whole machine equipment.
Product Applications：
·
·
·
·
Product Features：
·
·
·
Product Parameters
Product Model：LM2100 - DSF40 - A1 | |
Technical Indicators | Index and Applicable Range |
Wavelength | 2100nm |
Beam Diameter | 4mm |
Maximum single pulse energy | 3J@10Hz |
Maximum average power | 30W |
Energy Stability （RMS） | ≤ 5% |
Pulse Width | 400～800us |
Repetition Frequency | 5～30Hz |
Appendix
Pumping and Power Supply Reference Parameters | |
Injection Energy | ≤ 100 J |
Power Supply Type | IGBT |
Power Supply Power | ~2000 W |
Peak Output Power of Power Supply | ≤ 200 kW |
Cooling System Reference Parameters | |
Water Quality Requirment | Deionized water |
Circulating Water Conductivity | < 20 “S/cm |
Cooling Water Temperature | 20 ℃ |
Water Flow Rate | 11～15 L/min |
Water Pressure | 0.25～0.3 MPa (35～42psi) |

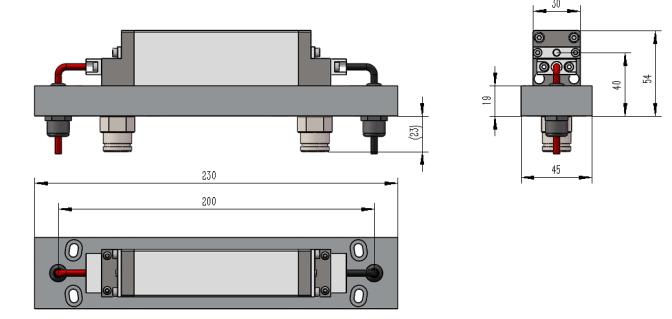

Product Specification（ mm ）：
Precautions：
1. During installation, commissioning, and operation, pay attention to laser protection
2. During installation, pay attention to the laser output direction.
3. It is strictly prohibited to start the machine without cooling water. Ensure that the cooling system is working properly before starting the operation of the laser module.
