Diffusion Bonding Crystal
Categories:

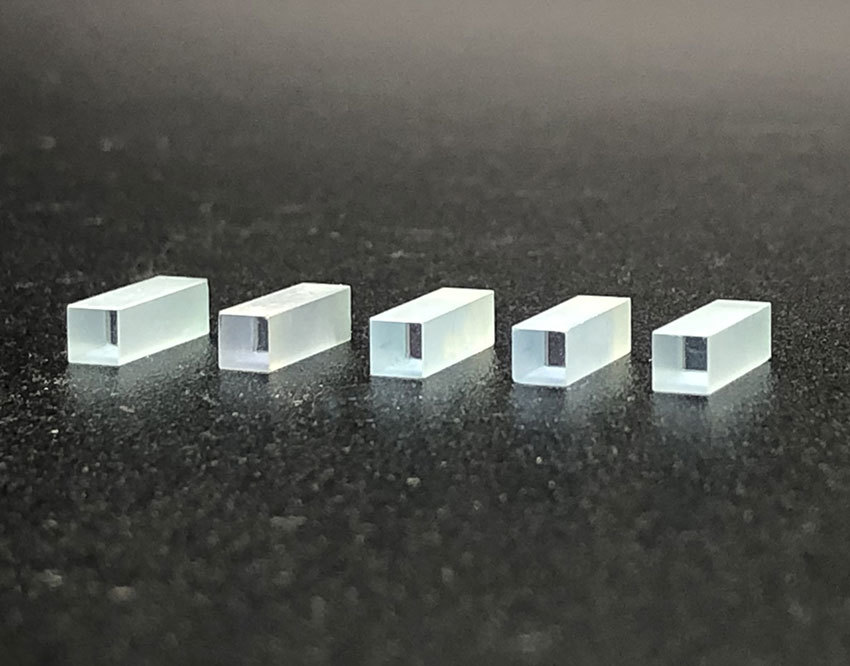

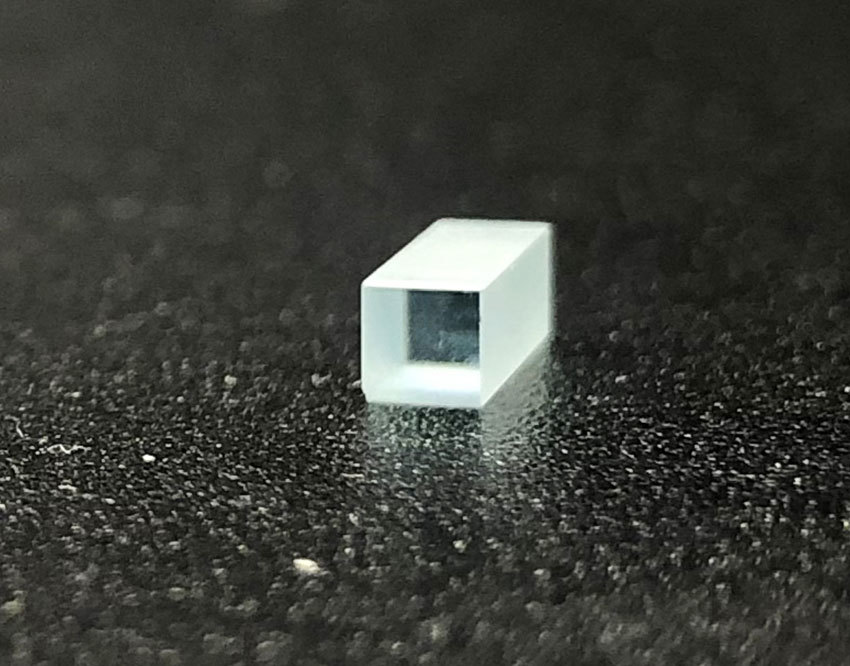

Diffusion Bonded Crystals consist of two or three different crystals. Usually, undoped crystal is bonded on one end or both ends of the doped crystal. They are combined by special thermal bonding technique. Diffusion Bonded Crystals can decrease thermal lensing effect considerably, It can improve laser performance and beam quality, and it is very suitable for high power laser applications.
Product Specifications
Types | YVO4+Nd:YVO4 YVO4+Nd:YVO4+YVO4 YAG+Nd:YAG YAG+Nd:YAG+YAG Nd:YAG+Cr:YAG | ||
Dimension Tolerance | Width (+/-0.1) * Height (+/-0.1) * Length (+0.5/-0.1 mm | ||
Scratch/Dig | 20/10 | Perpendicularity | ≤ 10 ′ |
Parallelism | ≤ 10 ″ | Chamfer | < 0.1mmx45° |
Flatness | λ/10 @ 633nm | Chips | < 0.1mm |
Wavefront Distortion | λ/8 @ 633nm | Clear Aperture | ≥ 95% |
Coatings | AR @ 1064nm & 808nm, other coatings upon request | ||
Ends Type | Parallel, Anti-Parallel | ||
Standard Products
Part Number | Size | Working Wavelength | Type |
1.CR.DBC.D04007.C003 | φ4X7 | 1064nm | Nd:YAG+Cr:YAG |
1.CR.DBC.030314.C002 | 3X3X14 | 1064nm | YVO4+Nd:YVO4 |
1.CR.DBC.D03010.C003 | φ3X10 | 1064nm | Nd:YAG+Cr:YAG |
1.CR.DBC.030308.C003 | 3X3X8 | 1064nm | YAG+Nd:YAG |
Description
Diffusion Bonded Crystals consist of two or three different crystals. Usually, undoped crystal is bonded on one end or both ends of the doped crystal. They are combined by special thermal bonding technique. Diffusion Bonded Crystals can decrease thermal lensing effect considerably, It can improve laser performance and beam quality, and it is very suitable for high power laser applications.
Features :
·
·
·
Applications :
·
·
·
Our Advantages:
·
·
·
·
·
Configurations
