1535nm Bonded Crystal
Categories:

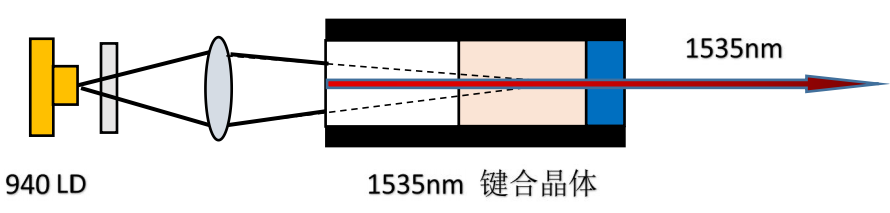

1535 Bonded Crystal is a diffusion bonded crystal, which is bonded by Er:Yb:Glass and Co:Spinel. It is pumped by 940nm diode Laser to generate 1535nm Laser, which is a safe wavelength for human eyes. Its small size makes it ideal to be integrated into miniature lasers.
Features ：
Eye safe
High efficiency, low energy consumption
Good energy stability
Wide working temperature (-40℃ ~ +60℃)
Compact design, easy to use
Applications ：
Laser Lidar
Laser Rangefinder
Our Advantages ：
Fast Delivery
High quality, competitive price
Good service
Synonyms
1535nm Diffusion bonded crystal, 1535nm Eye Safe crystal
1535 Bonded Crystal is a diffusion bonded crystal, which is bonded by Er:Yb:Glass and Co:Spinel. It is pumped by 940nm diode Laser to generate 1535nm Laser, which is a safe wavelength for human eyes. Its small size makes it ideal to be integrated into miniature lasers.
CRYSTECH’s unique technique in bonding technology enables the crystal to have high strength and low absorption loss in the bonding interface.
This crystal has good energy stability and laser beam quality, and also has narrow linewidth and short pulse width.
It is specifically designed for laser range finding application. It is available in different energy versions, from 5μJ to 1mJ, which enables various ranging distances.
Test Data:
Narrow Linewidth

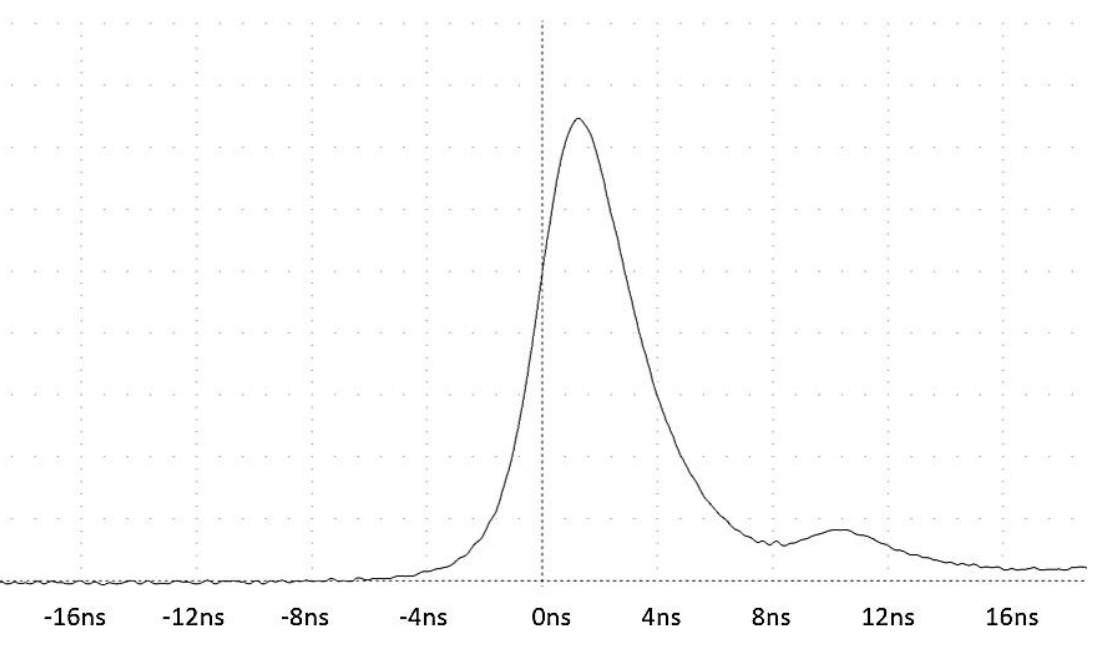

Short Pulse Width

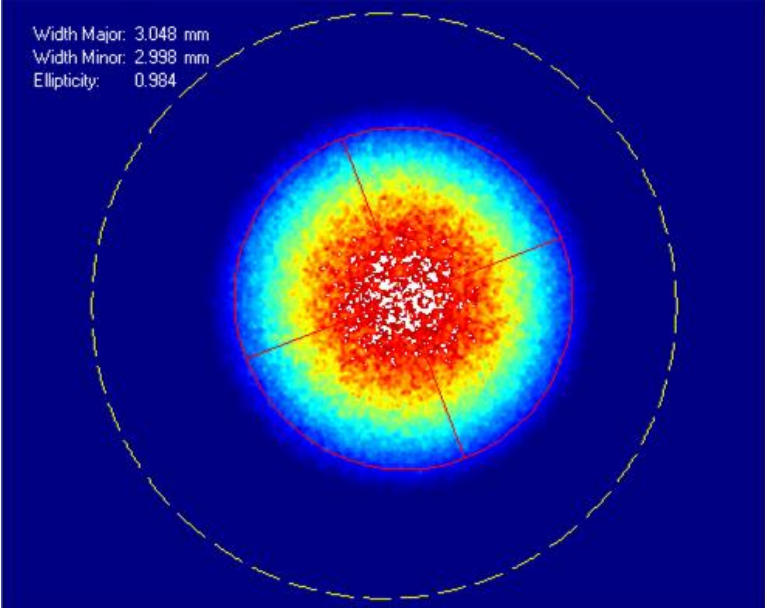

Good Beam Shape

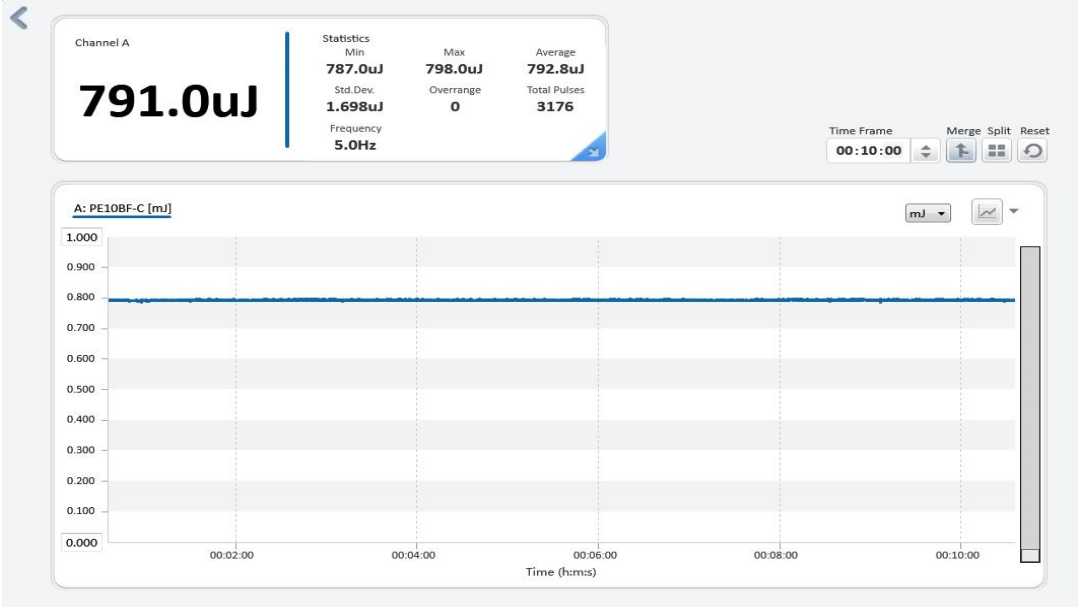

High Energy Stability (pumped by 940nm LD @ 25A, 2ms, 5Hz, 25℃)
Energy Grade | Part Number | Crystal Size W*H*L / mm | Output Energy @ LD power, LD pulse width, @ 25℃ | Rep. Rate / Hz | Output Pulse Width / ns | Stability / RMS |
5µJ | DB1535-05-01 | 1.4x1.0x3.5 | > 5µJ @ 4W, 25µs | 10K | 10 ± 1 | < 3% |
10µJ | DB1535-10-01 | 1.4x1.0x3.5 | > 10µJ @ 4W, 40µs | 5K | 6 ± 1 | < 3% |
20µJ | DB1535-20-01 | 1.4x1.0x3.5 | > 20µJ @ 4W, 0.1ms | 2.5K | 5 ± 1 | < 3% |
40µJ | DB1535-40-01 | 1.4x1.0x5.5 | > 40µJ @ 4W, 0.3ms | 1K | 4 ± 1 | < 3% |
100µJ | DB1535-100-03 | 1.2x0.8x7 | > 100µJ @ 7W, 1.5ms | 10 | 4 ± 1 | < 3% |
200µJ | DB1535-200-03 | 1.2x0.8x8 | > 200µJ @ 10W, 1.5ms | 10 | 4 ± 1 | < 3% |
300µJ | DB1535-300-02 | 1.4x1.0x10 | > 300µJ @ 12W, 1.6ms | 10 | 4 ± 1 | < 3% |
500µJ | DB1535-500-02 | 1.7x1.3x13 | > 500µJ @ 20W, 1.6ms | 10 | 5 ± 1 | < 3% |
750µJ | DB1535-750-01 | 2.0x1.6x17 | > 750µJ @ 25W, 2ms | 5 | 6 ± 1 | < 3% |
1mJ | DB1535-1000-01 | 2.0x1.6x17 | > 1mJ @ 30W, 2ms | 2 | 6 ± 1 | < 3% |
