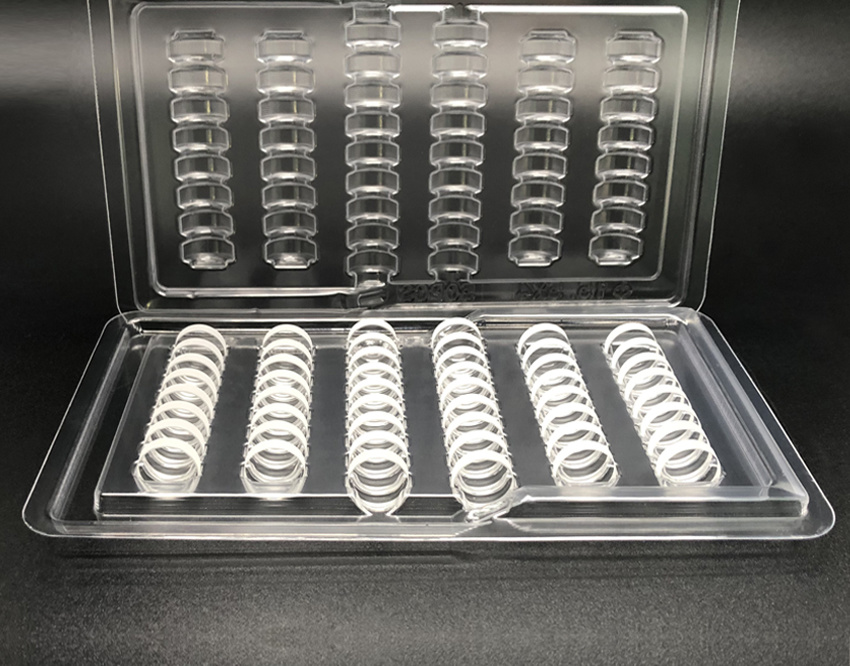

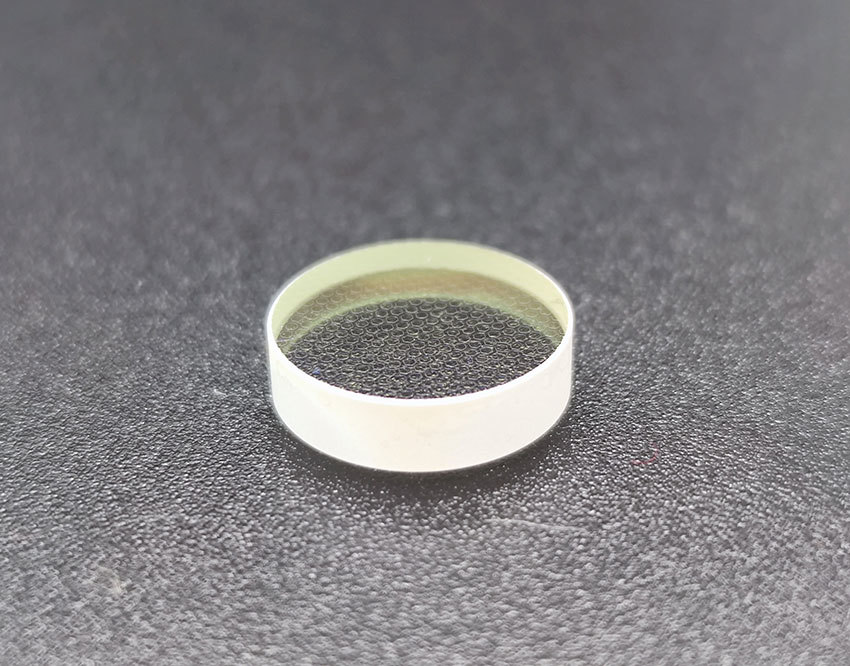

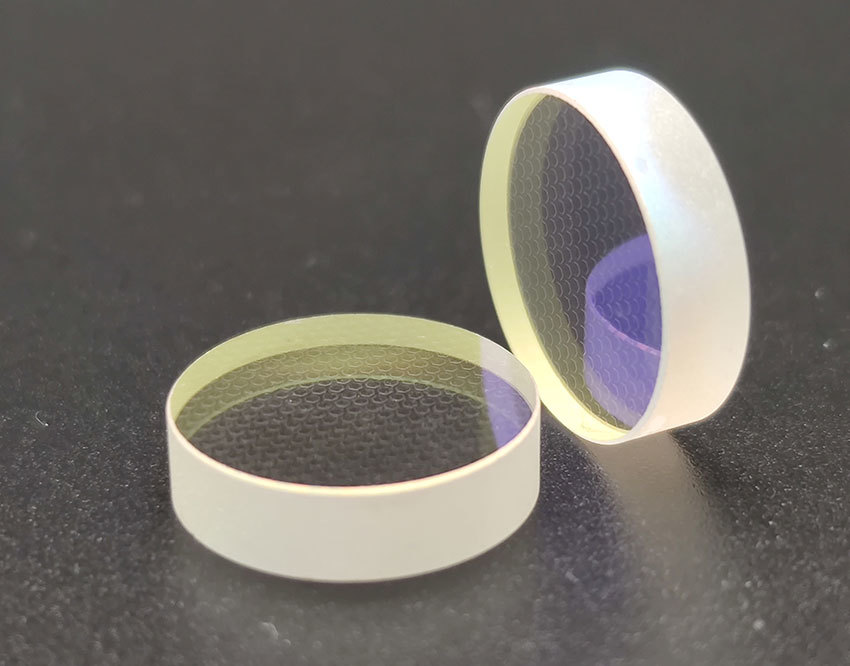

CRYSTECH is dedicated to manufacturing high precision Cell Mirror for Nd:YAG Q-Switch Laser Medical Device. We have over 10 years of experience in cell mirror manufacturing, design, and coating. It is a binary optical element, and its main function is to transform the gaussian beam in the laser system into a flat topped beam. CRYSTECH can provide the cell mirror for 1064nm, 755nm, 694nm Q-Switch system.

Download

Product Features Specifications& Coatings Standard Products

Description

CRYSTECH is dedicated to manufacturing high precision Cell Mirror for Nd:YAG Q-Switch Laser Medical Device.

We have over 10 years of experience in cell mirror manufacturing, design, and coating. It is a binary optical element, and its main function is to transform the gaussian beam in the laser system into a flat topped beam. CRYSTECH can provide the cell mirror for 1064nm, 755nm, 694nm Q-Switch system.

Beam spot before and after homogenization

Beam quality analyzer Burning spot

before after before after

P/N	Size	Coating	Curvature
OP.CLM.D15004.C002	φ15X4	1064nm	R=-2500
OP.CLM.D15004.C003	φ15X4	1064nm	R=-3000
OP.CLM.D15004.C004	φ15X4	1064nm	R=-4000
OP.CLM.D15004.C005	φ15X4	1064nm	R=-2000
OP.CLM.D20004.C002	φ20X4	1064nm	R=-2500
OP.CLM.D20004.C020	φ20X4	1064nm	R=-4000
OP.CLM.D25004.C001	φ25.4X4	1064nm	R=-2000
OP.CLM.D25004.C002	φ25.4X4	1065nm	R=-4000
