DOE HP(532nm/1064nm)

E-mail：sales@crystech.com

Tel：+86-532-88703980

Categories:

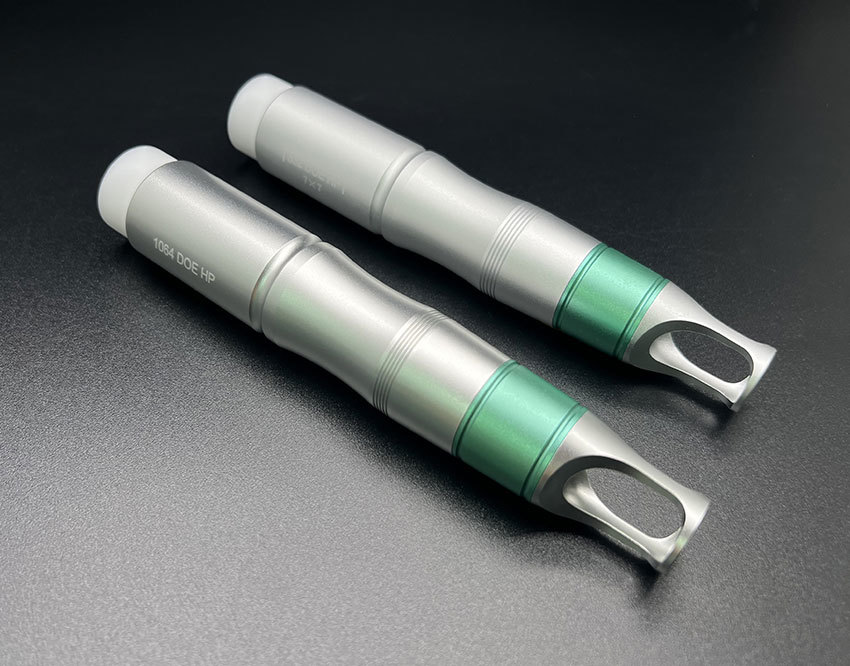

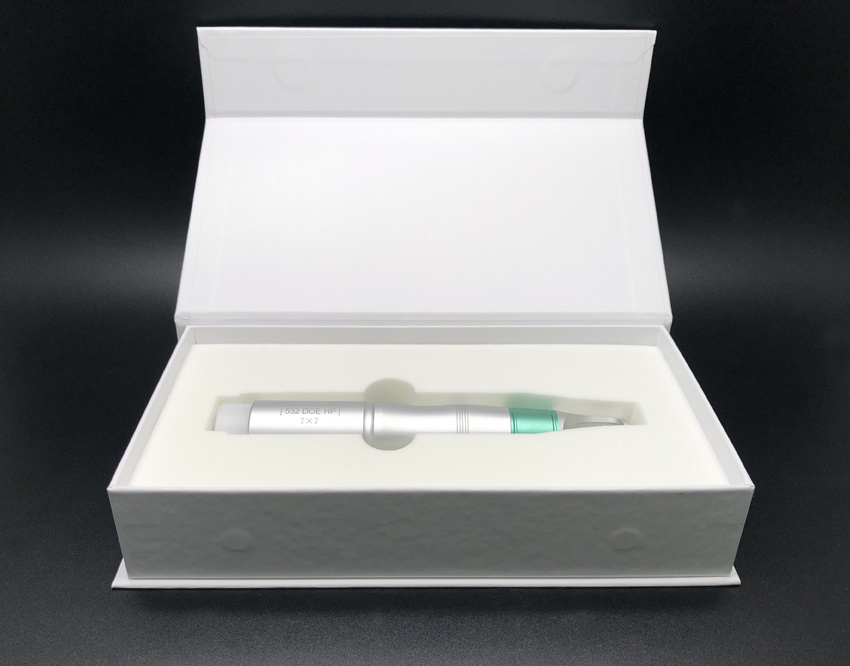

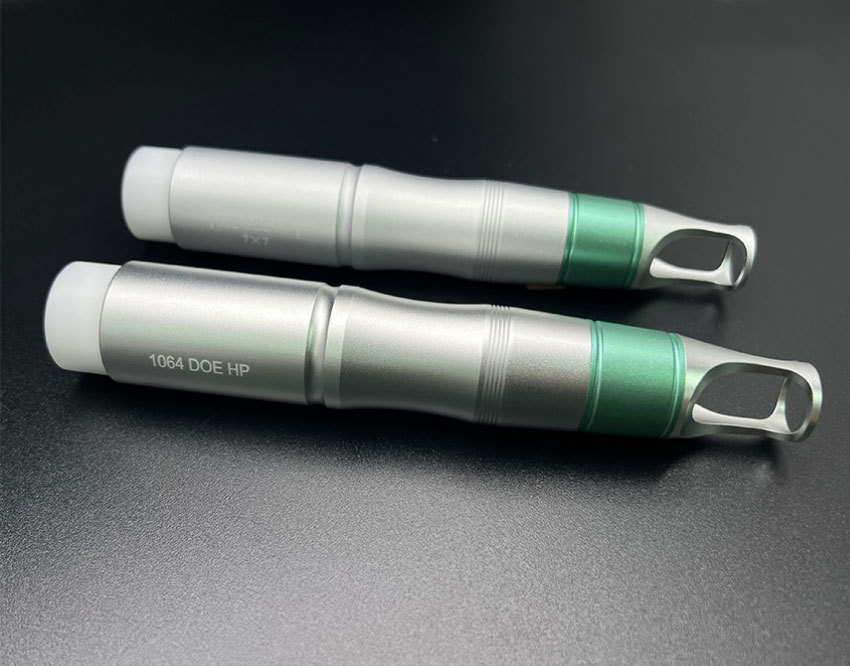

A Diffractive Optical Element (DOE) is an optical component fabricated based on the principle of binary optics, which can precisely control the light intensity distribution of the light beam passing through it. Optical components made of DOE are widely used in the field of skin cosmetology, mainly playing roles in treating acne and acne marks, removing pigmented spots and fine lines on the skin, and improving joint wrinkles and stretch marks. CRYSTECH has developed the DOE Handpiece (DOE HP) based on the application of DOE in the medical cosmetology market. The product is connected to the laser output terminal of the laser beauty instrument and serves as the operating handle for medical cosmetology procedures to achieve the lattice output of the treatment laser beam. The product features a compact structure, is convenient to use, and has stable performance. By replacing the handpiece, a single set of laser treatment apparatus can achieve different laser beam emission mode outputs.

Download

Product Features & Applications Product Specifications Standard Products

Product Applications:

·Pigmented spot removal

·Treatment of acne and acne marks

·Skin wrinkle removal

·Improvement of joint wrinkles and stretch marks

·Improvement of deep skin scars

Product Features：

·Compact in structure & convenient for replacement

·Easily achieve the transformation of light spot patterns

·Uniform energy distribution

Model	Application Wavelength	Efficiency	Number of Spots	Spot Size	Spot Shape	Signal Cable
HP1064-DOE-71N	1064nm	60%	49	10× 10mm2	square	No
HP532-DOE-71N	532nm	60%	49	10× 10mm2	square	No
HP1064-DOE-71S	1064nm	60%	49	10× 10mm2	square	Yes
HP532-DOE-71S	532nm	60%	49	10× 10mm2	square	Yes
