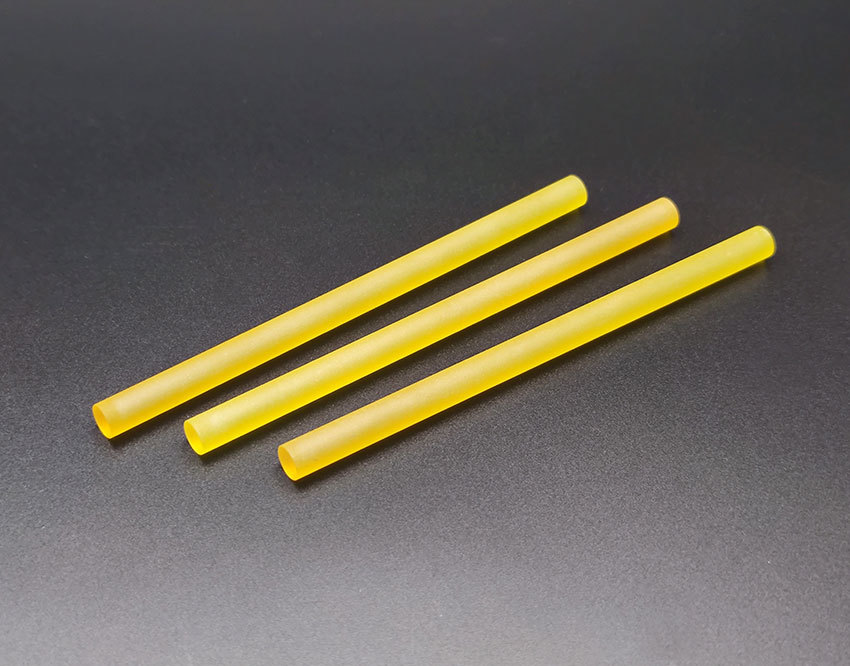

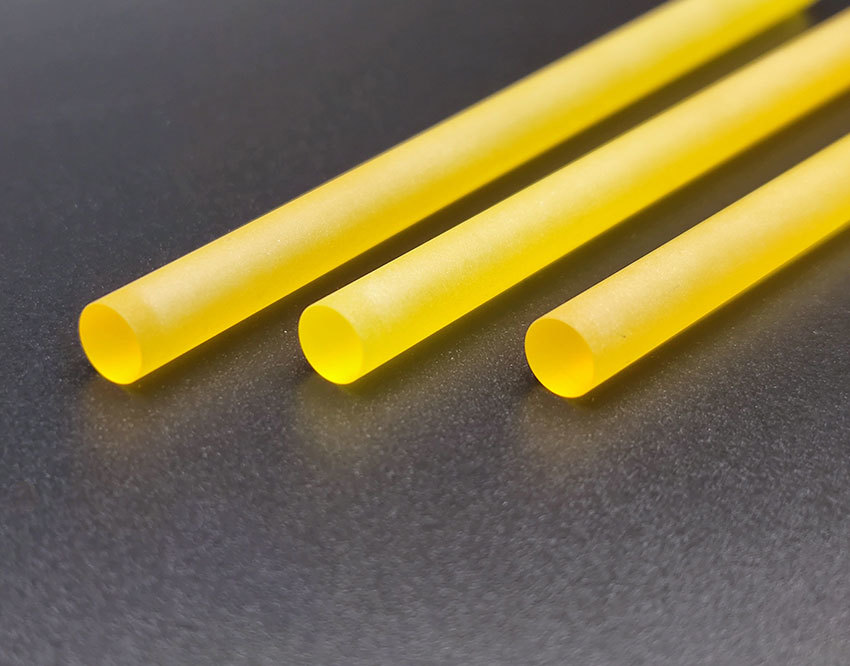

Nd:Ce:YAG

E-mail：sales@crystech.com

Tel：+86-532-88703980

Categories:

Nd:Ce:YAG is a high efficiency laser material that can be widely used in medical, military and meteorology fields. In double doped Nd:Ce:YAG crystals, Cerium are chosen as sensitizer for Nd3+ ions because of its strong absorption in UV spectral region in flash lamp pumping and efficient energy transition to the Nd3+ excited state. As a result, the thermal distortion is less in Nd:Ce:YAG and the output laser energy is greater than that in Nd:YAG at the same pumping. Therefore, it is possible to realize high power lasers with good beam quality. Lasing wavelength at 1064 nm, laser damage threshold and thermal conductivity of Nd:Ce:YAG crystals are the same as Nd:YAG.

Download

Product Specifications Physical & Optical Properties Product Features & Applications

Product Specifications

Dimension Tolerance	Diameter (+0/-0.1) * Length (+1/-0.5) mm
Cut Angle	<111>	Nd³⁺ Dopant	0.9 - 1.3 at%
Angle Tolerance	+/-5 °	Perpendicularity	≤ 5 ′
Scratch/Dig	10/5	Chamfer	< 0.15mmx45°
Parallelism	≤ 30 ″	Chips	< 0.1mm
Flatness	0.125λ @ 633nm	Clear Aperture	≥ 95%
Wavefront Distortion	< 0.125λ per inch @ 633nm	Extinction Ratio	>28dB
Coatings	Standard Coating: AR/AR 1064nm; Other coating upon request
Damage Threshold	750MW/cm² 10ns 10Hz at 1064nm
Ends Type	Parallel, Anti-Parallel, Flat or Curved

Standard Products

Part Number	Size	Working Wavelength
1.CR.NCG.D08130.C002	φ8X130	1064nm
1.CR.NCG.D07145.C002	φ7X145	1064nm
1.CR.NCG.D07115.C002	φ7X115	1064nm
1.CR.NCG.D07085.C002	φ7X85	1064nm
1.CR.NCG.D06115.C002	φ6X115	1064nm
1.CR.NCG.D05115.C002	φ5X115	1064nm
1.CR.NCG.D04115.C002	φ4X115	1064nm
1.CR.NCG.D03115.C002	φ3X115	1064nm

Physical & Optical Properties

Host material formula:	Y₃Al₅O₁₂
Crystal Structure:	Cubic
Lattice Constant (Å):	a=12.01
Thermal Expansion Coefficient (K^-1) :	7 x 10^-6
Thermal Conductivity (W∙cm^-1∙K^-1):	0.14
Melting Point (℃):	1950
Mohs Hardness:	8.5
Density (g/cm³):	4.55
Emission Cross Section (cm^-2):	2.8 x 10^-19 (1064nm)
Fluorescence Lifetime (μs):	230 (1064nm)
dn/dT (℃^-1):	7.3 x 10^-6
Refractive Index (1064 nm):	1.82
Primary Lasing wavelength (nm):	1064

Description

Nd:Ce:YAG is a high efficiency laser material that can be widely used in medical, military and meteorology fields. In double doped Nd:Ce:YAG crystals, Cerium are chosen as sensitizer for Nd³⁺ ions because of its strong absorption in UV spectral region in flash lamp pumping and efficient energy transition to the Nd³⁺ excited state. As a result, the thermal distortion is less in Nd:Ce:YAG and the output laser energy is greater than that in Nd:YAG at the same pumping. Therefore, it is possible to realize high power lasers with good beam quality. Lasing wavelength at 1064 nm, laser damage threshold and thermal conductivity of Nd:Ce:YAG crystals are the same as Nd:YAG.

Applications:

·Diode-pumped Lasers, Flashlamp-pumped Lasers

·Water-cooled or Air-cooled Lasers

·Pulsed or CW operations

·Materials Processing, Marking, Welding, Cutting

·Laser Range Finding

Our Advantages:

·Crystal Boules growth, cutting, polishing, coating all in house

·Rod: diameter 3mm to 7mm, Length: up to 180mm

·High damage threshold coating

·Excellent quality, competitive price, fast delivery, good service
