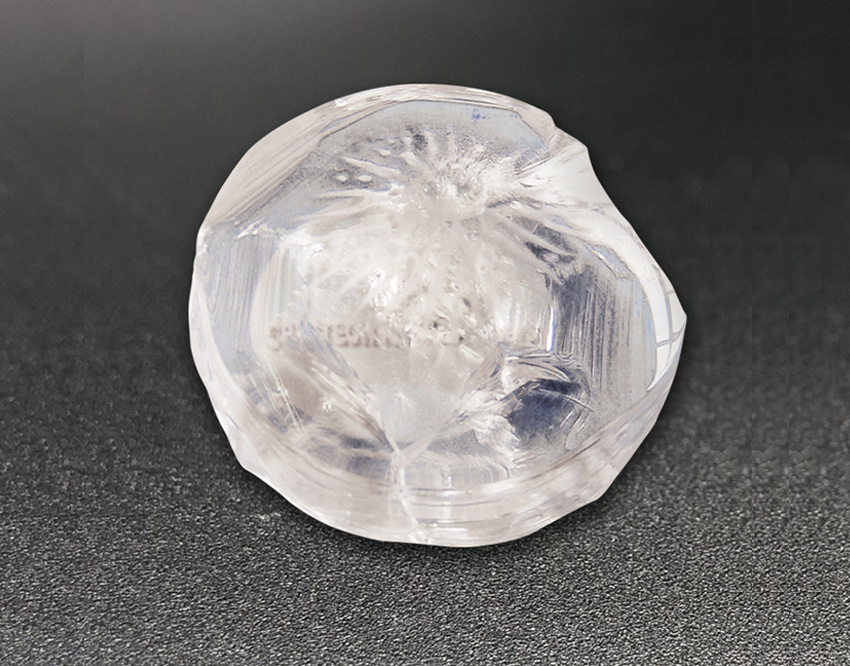

Beta-Barium Borate (β-BaB2O4 or BBO) is is grown with the flux method, it is a negative uniaxial crystal with ordinary refractive-index (no) larger than extraordinary refractive-index (ne). Both type I and type II phase-matching can be reached by angle-tuning. BBO is of particular importance in the visible and far UV range.

Download

Product Specifications Physical & Optical Properties Product Features & Applications

Processing indicators

Size Tolerance	W±0.1 mm×H±0.1mm×L+0.5/-0.1 mm (L≥2.5 mm)
CA	≥90%
S/D	10/5 according to MIL-PRF-13830B
Flatness	≤λ/10@633nm
WFD	≤λ/8@633nm
Parallelism	10"
Perpendicularity	≤10'
Angle tolerance	≤0.25°
Chamfer	≤0.2mm@45°
Chip	≤0.1mm
LIDT	>1 GW/cm²@1064nm,10ns,10 Hz (AR coating)

Standard Products

Part Number	Size	Application
1.CR.BBO.454507.P003	4.5X4.5X7 mm	THG@1064nm->355nm
1.CR.BBO.454507.P005	4.5X4.5X7 mm	FHG@1064nm->266nm

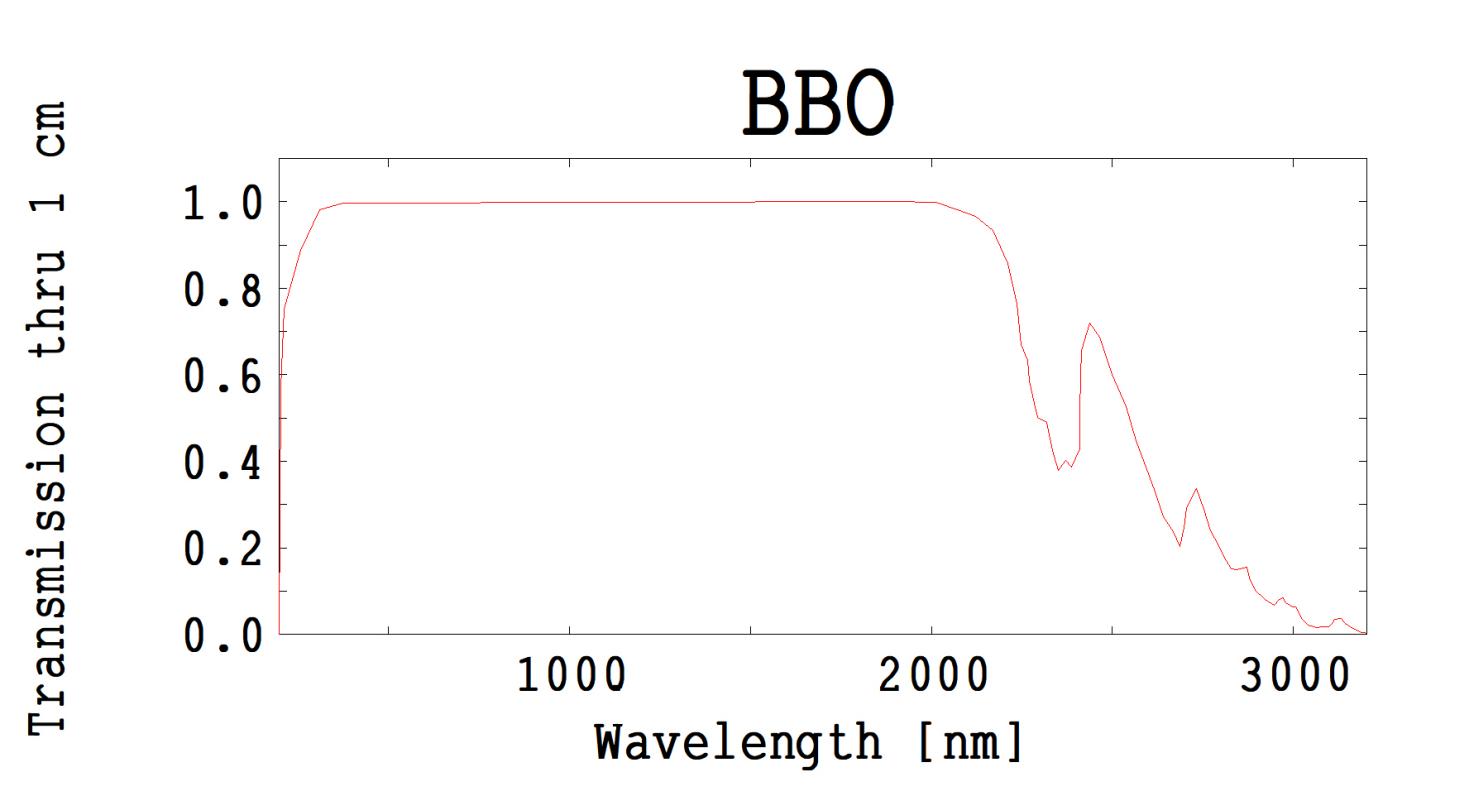

Transmittance curve of BBO

Physical and Optical Properties

Physical Properties:

Crystal Structure:	Trigonal, space group R3c
Lattics Parameters:	a=b=12.532Å, c=12.717Å, Z=6
Melting point	About 1095℃
Mohs Hardness	4
Density	3.85g/cm3
Thermal Conductivity Coefficients	⊥c: 1.2W/m/K; //c: 1.6W/m/K
Thermal Expansion Coefficients	α11=4 x 10-6/K; α33=36x 10-6/K

Optical Properties:

Crystal Structure:	Trigonal, space group R3c
Lattics Parameters:	a=b=12.532Å, c=12.717Å, Z=6
Melting point	About 1095℃
Mohs Hardness	4
Density	3.85g/cm3
Thermal Conductivity Coefficients	⊥c: 1.2W/m/K; //c: 1.6W/m/K
Thermal Expansion Coefficients	α11=4 x 10-6/K; α33=36x 10-6/K
