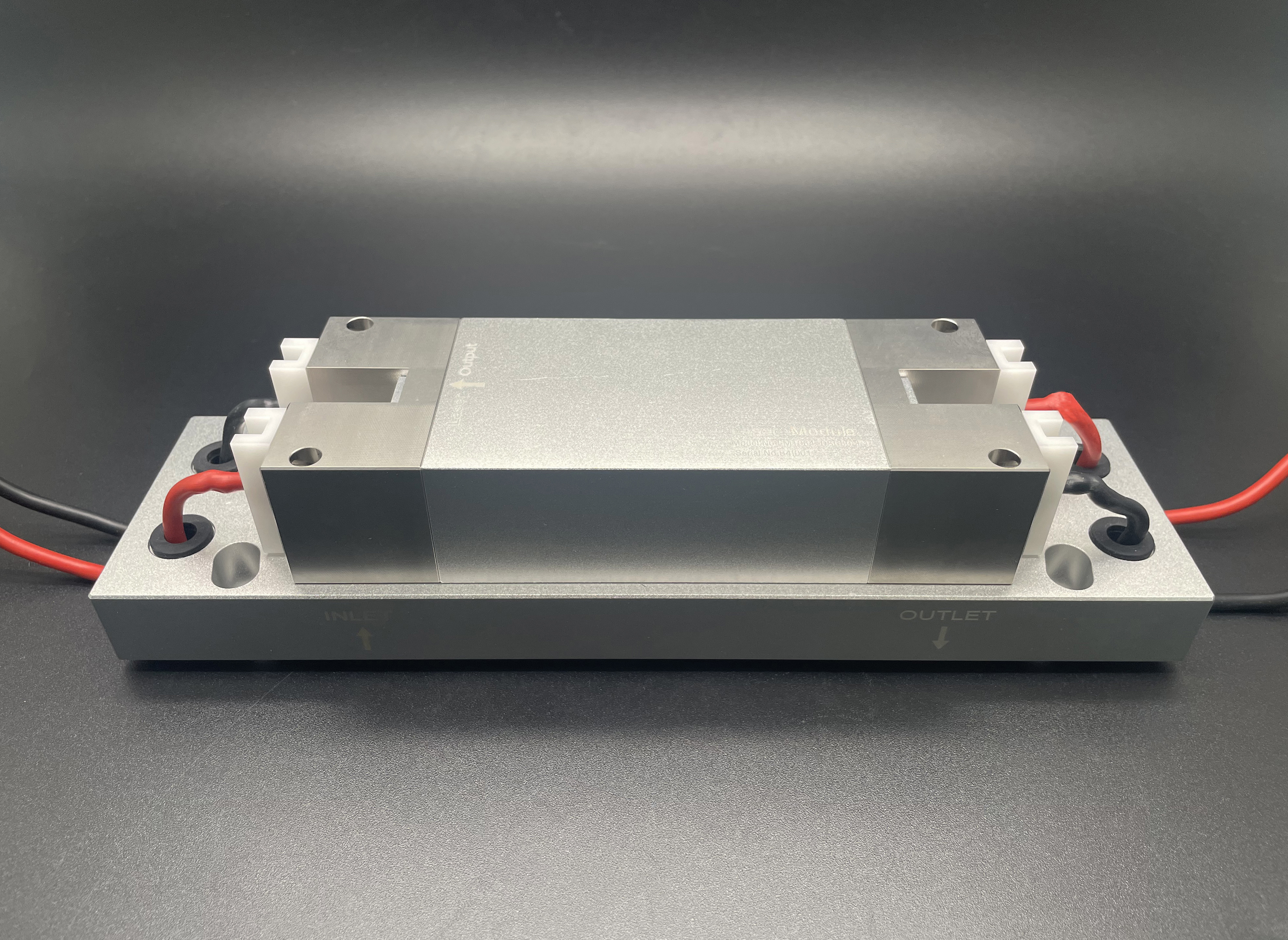

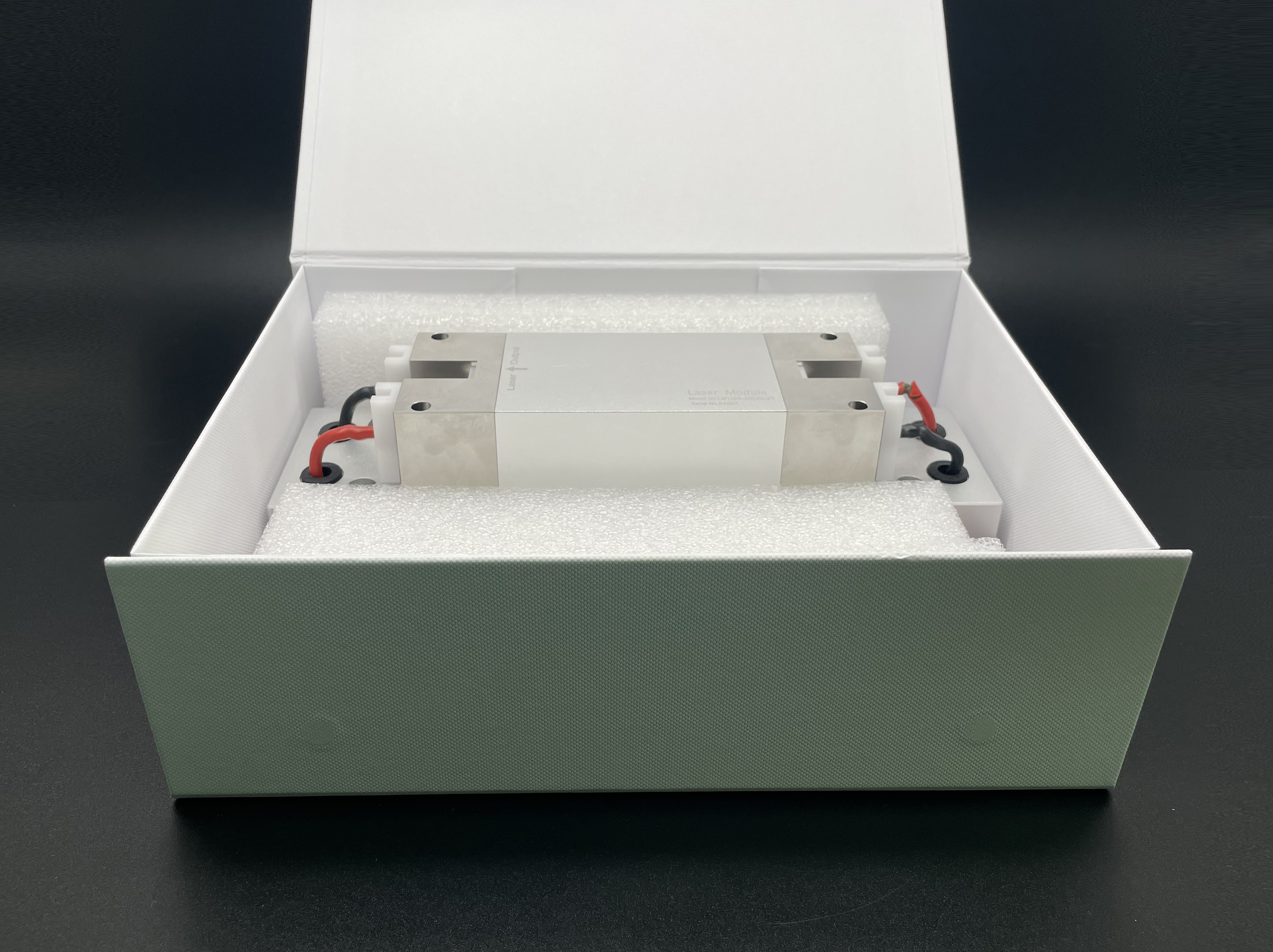

1064nm Long Pulse Laser Module
Categories:
CRYSTECH based on the market demand for 1064nm Laser Medical Aesthetics and combined with the characteristics of Nd: YAG crystal materials, has designed and developed the 1064nm long pulse laser module. This product adopts a dual-lamp parallel pumping mode, with greater energy and longer service life; the Nd: YAG crystal adopts a plano-concave resonant cavity design scheme, with a more compact structure, better stability, simple operation, and easy maintenance of the whole machine equipment.
The 1064nm Long Pulse Laser Module has been designed and developed by CRYSTECH based on the market demand for 1064nm lasers in the aesthetics industry. This product adopts a dual-lamp parallel pumping mode, featuring higher energy output and long service life. It offers a more compact structure, improved stability, ease of use, and convenient maintenance for the complete system.
Product Applications:
- Vascular Lesion Treatment
- Laser Hair Removal
- Acne Scar Treatment
- Laser Skin Rejuvenation
- Non-invasive Lipolysis
Product Features:
- Compact Structure & Easy Installation
- High Single Pulse Energy & High Peak Power
- Stable Energy Output
- Long Service Life
Product Specifications (Test condition: 80J, 1Hz, 8ms)
Parameter | Specifications | Notes | |
Part Number | LM1064-DSC80-RP | LM1064-DSC80-AA |
|
Configuration | Resonator mirrors are not required | Resonator mirrors are required |
|
Laser Wavelength | 1064nm ± 5nm |
| |
Pulse Energy | ≥ 80J |
| |
Pulse Duration | 0.5 - 100ms |
| |
Repetition Rate | 0.3 - 10Hz |
| |
Energy Conversion Efficiency | ≥ 5% |
| |
Peak Power | ≥ 10kW |
| |
Energy Instability | ≤ 3% |
| |
Beam Spot Circularity | > 0.95 |
| |
Beam Divergence | ~ 30mrad | ~ 10mrad (optics-dependent) | distance 30cm |
Beam Spot Diameter | ~ 17mm | ~ 10mm (optics-dependent) | distance 30cm |
Beam Spot Profile | Near Flat-Top | Near flat-top (optics-dependent) | distance 30cm |
Dimensions and Weight | 35 x 62 x 186 mm, ~ 1.3kg | Without Base | |
57.5 x 70 x 215mm, ~ 2.4kg | With Base | ||
Electrode Connection | Wire connection, Wire length 150mm |
| |
Dimensions (mm):
Module Interface:
1.Electrodes:
Red wire: connect to the positive terminal of the power supply.
Black wire: connect to the negative terminal of the power supply.
The two lamps are connected in parallel.
2.Coolant Inlet/Outlet ports are with G1/4-thread. Customers can connect it using their own connectors with G1/4 thread (thread length less than 10 mm). Alternatively, the optional PC12-G02 quick-connectors (supplied in the package) can be used, which is compatible with a 12 mm outer diameter water pipe.
Precautions：
1.Wear appropriate laser protective eyewear during installation, laser tuning and operation.
2.Be aware of the laser output direction during installation.
3.NEVER operate the laser module without coolant flow. Verify that the cooling system is fully operational before powering on the laser module.
Product Specifications (Test condition: 80J, 1Hz, 8ms)
Parameter | Specifications | Notes | |
Part Number | LM1064-DSC80-RP | LM1064-DSC80-AA |
|
Configuration | Resonator mirrors are not required | Resonator mirrors are required |
|
Laser Wavelength | 1064nm ± 5nm |
| |
Pulse Energy | ≥ 80J |
| |
Pulse Duration | 0.5 - 100ms |
| |
Repetition Rate | 0.3 - 10Hz |
| |
Energy Conversion Efficiency | ≥ 5% |
| |
Peak Power | ≥ 10kW |
| |
Energy Instability | ≤ 3% |
| |
Beam Spot Circularity | > 0.95 |
| |
Beam Divergence | ~ 30mrad | ~ 10mrad (optics-dependent) | distance 30cm |
Beam Spot Diameter | ~ 17mm | ~ 10mm (optics-dependent) | distance 30cm |
Beam Spot Profile | Near Flat-Top | Near flat-top (optics-dependent) | distance 30cm |
Dimensions and Weight | 35 x 62 x 186 mm, ~ 1.3kg | Without Base | |
57.5 x 70 x 215mm, ~ 2.4kg | With Base | ||
Electrode Connection | Wire connection, Wire length 150mm | ||
